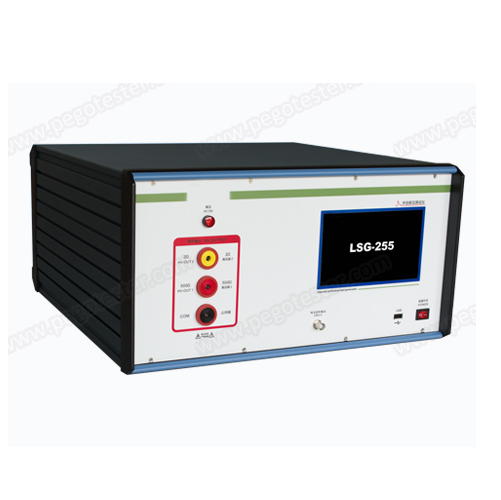

Skylark LSG-255 Impulse Voltage Generator (12KV; 1.2/50μs)
ManufacturerSkylark(View more products from this manufacturer)
ModelLSG-255
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Open output voltage: 12KV (max)±5%
Frontier time: 1.2μs±30%
Half-value time: 50μs±20%
Output polarity: positive, negative, positive/negative automatically
Output impedance (optional): 2Ω/12Ω,500Ω±10%
Test times: 1~9999 times
Surge interval: 3~999s
Working environment: 15℃~35℃ (temperature), 10%~75% (humidity)
Working power: 220V±10% AC, 50/60Hz
Dimension: 470mm*260mm*500mm (W*H*D)
Weight: 35KG
