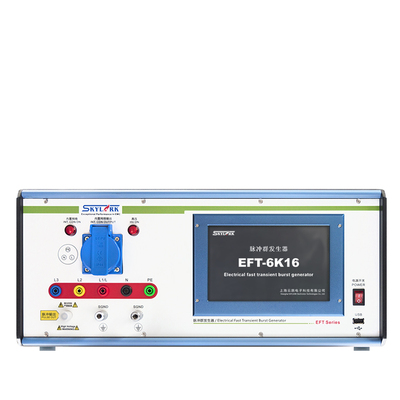

Skylark EFT-6K16 Group pulse generator

Open circuit output voltage: 0.25-6kV ±5%

50Ω load output voltage: 0.125-3kV ±5%

Pulse shape: 5/50ns, 50Ω and 1000Ω load

Rise time:

- 5ns ±30%, 50Ω load

- 5ns ±30%, 1000Ω load

Pulse duration:

- 50ns±30%, 50Ω load

- 50ns-15/+100sn, 1000Ω load

Source impedance: 50Ω ±20%

Output polarity: Positive, negative, positive and negative cycle, alternating positive and negative, first positive and then negative, first negative and then positive

Pulse repetition frequency: 0.1－1200.0kHz ±10%

Burst length:

- standard: 15ms@2.5kHz/5kHz, 750μs@100kHz, 250μs@300kHz

- Adjustable: The number of pulses can be selected from 1 to 255

Pulse train length=(number of pulses-1)/pulse repetition frequency

Burst period: 100－999ms

Trigger mode: Synchronous or asynchronous;Sync phase

Freely set 0-360°, resolution 1°

Programmable test program: Built-in IEC standards and user-defined programs, up to 1000 groups

Built-in network capacity (Three lines and five lines)

- comminicate: Three-phase 380V, 16A (Max), 50/60Hz

- Direct current: 380V, 16A (Max)

Built-in network coupling: L1, L2, L3, N, PE, can be any combination

Built-in network coupling device: 33nF ±10% capacitive coupling

Use environment: Temperature: 15°C－35°C relative humidity 10%－75%

System power: AC220±10%, 50/60Hz, about 300W

Dimensions: 470mm wide × 215mm high × 500mm deep

Total Weight: About 25kg

Product Standard:

- IEC 61000-4-4

- IEC 61000-6-2

- IEC 61850-3

- GB/T 17626.4

- IEC 61000-6-1

- IEC 61326

- ANSI/IEEE C62.41

- EN 61000-4-4

- EN 61000-6-1

- EN 61000-6-2

- EN 61850-3

- EN 61326

- uIEC/EN 60601-1-2
