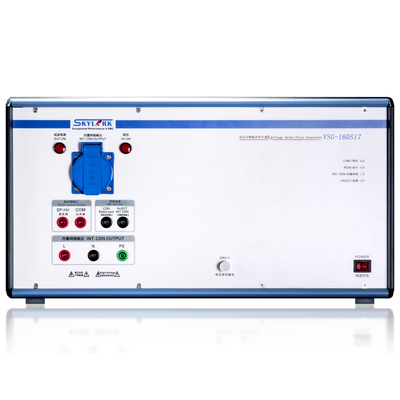

Skylark DO160-17 Spike voltage generator
ManufacturerSkylark(View more products from this manufacturer)
ModelDO160-17
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Test the voltage range: 5V to 1000V (continuously adjustable)
Rise time: ≤2μs
duration: ＞10μs
impedance: 50Ω ±10 %
Output polarity: Positive/negative
The pulse frequency:MAX 2Hz
Series mode:The coupling transformer has a built-in Max16A
The output port: 4mm plug
Operating power range: AC 220V 50Hz
fuse: 6A
Maximum power consumption: 200W
Chassis size:500*470*260 mm
The weight of the instrument: About 20Kg
Temperature range: 15-35℃
Humidity range: 45% - 75%
Air pressure range: 86kPa –106kPa
