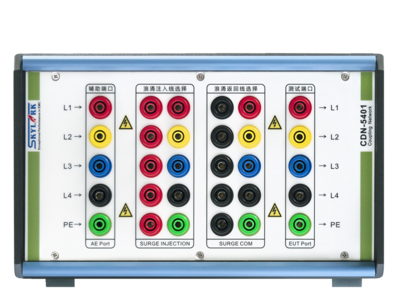

Skylark CDN-5401 Surge coupling/decoupling network

Coupling mode: Wire to wire (differential mode), wire to ground (common mode)

Surge test voltage: Up to 6kV (1.2/50us waveform)

Coupling method 1: 40Ω resistance +90V gas discharge tube

Coupling mode 2: 40Ω resistor + 0.5uF capacitor

Coupling mode 3: 40Ω resistor + special clamping device

Coupling mode 4: 90V gas discharge tube

Coupling mode 5: 0.5uF capacitor

Coupling mode 6: Dedicated clamp circuit

Surge injection interface: 4mm socket

Test product interface: 4mm socket

Terminal layout: 4-wire

Data transfer rate: 100kBit/s

Operating Voltage: Max 50V DC

Working current: Maximum 1A

Dimensions: 257mm×168mm×355mm

Weight: About 10kg

Use environment: Temperature: 10℃～35℃, relative humidity: 30%～60%
