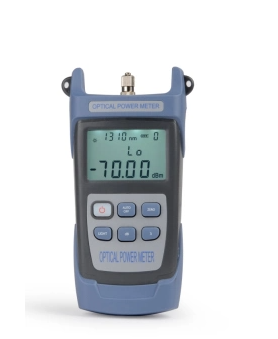

SKYCOM T-OP350GV05 Optical Power Meter (+26~-50dBm, VFL 5kms)
ManufacturerSKYCOM(View more products from this manufacturer)
ModelT-OP350GV05
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
VFL: 5kms
Measurement Range(dBm): +26~-50dBm
Accuracy: ±5%
Calibrated Wavelengths: 850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Resolution: 0.01dB
OPM Connector: 2.5mm UPP and FC interchangeable (SC, ST optional)
Reference Value storage: Yes
Auto Power Off: No operation in 10 minutes (can be canceled), Low battery energy
Battery: 3*AA Battery
General specifications
Size(H*W*D): 180mm *100mm * 50mm
Weight: about 240g
Storage Temperature: -30 ~ +70 ºC
Operating Temperature: -10 ~ +60 ºC
