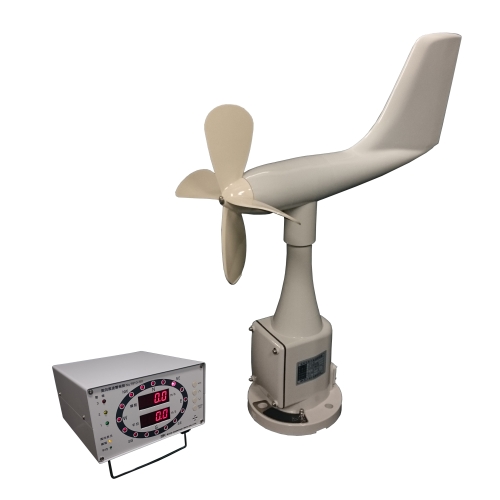

skSATO W693-ED1 Wind Speed and Direction Sensor (0~360°; 2~90m/s)

Applicable indicator: No.7910-50 Wind speed and direction indicator with alarm function (WVAT6D0-3-00)

Detection method: Wind direction: counter balanced tail: brushless potentiometer: 0~360°

Wind speed: Propeller: photoelectric pulse type

Measuring range: Wind direction: 0~360°

Wind speed: 2~90m/s

Accuracy: Wind direction: ±5°

Wind speed: ±0.5m/s (at < 10m/s)

±5%FS (at > 10m/s)

Starting wind speed: 2m/s

Withstand wind speed: 108m/s (wind tunnel)

Output signal: Wind direction: 0 ~ 360°/0 to 1VDC (built-in transmitter)

Wind speed: pulse output (60 pulse per one rotation of propeller)

Power requirements: 12VDC±2V (supplies from indicator)

Operation ambient: -20~50°C (without freeze on rotor)

Remote distance: ~300m in use of CVVS 1.25mm2 cable

Output connecter: NJW-207-PF10; Cord dia.:Ø8.6 to 10.5mm

Materials: Tail: carbon + polyester resin

Propeller & body: polycarbonate resin

Outer dimensions: ~ Ø250mm (propeller) × (H)660×(D)510mm

Installation: 3-Ø12.4×14.9mm (long hole) in a circle with Ø125mm

Weight: ~3kg
