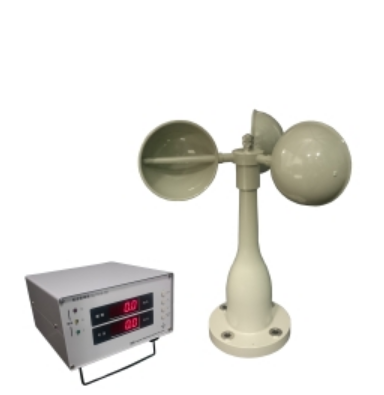

skSATO W11 3-Cup Anemometer (2~60m/s)

Applicable indicator: No.7915-50 Digital wind speed indicator with alarm (WAT6D0-3-00)

Detection method: 3-Cup AC generation type

Measuring range: 2 ~ 60m/s

Accuracy: ±0.5m/s (at lower than 10m/s) ±5%rdg (at more than10m/s)

Starting wind speed: 2m/s

Withstand wind speed: 90m/s (in wind tunnel)

Output signal: 30V±1VAC (no load) at 60m/s, Rotation of sensor: 1933rpm

Operation ambient: -20 to 50°C (no freezing at rotor)

Remote distance: within approx. 2km (in use of CVVS 1.25mm2 cable)

Materials: 3-Cup sensor: polycarbonate

Body: polycarbonate resin (inclusive glass fiber)

Outer dimensions: approx. Ø304mm×(H) 353mm (3-Cup sensor (sensor radius rotation approx.152mm)

Mounting dimensions: 4-Ø10.5mm in a 110mm dia. circle

Weight: approx. 1kg
