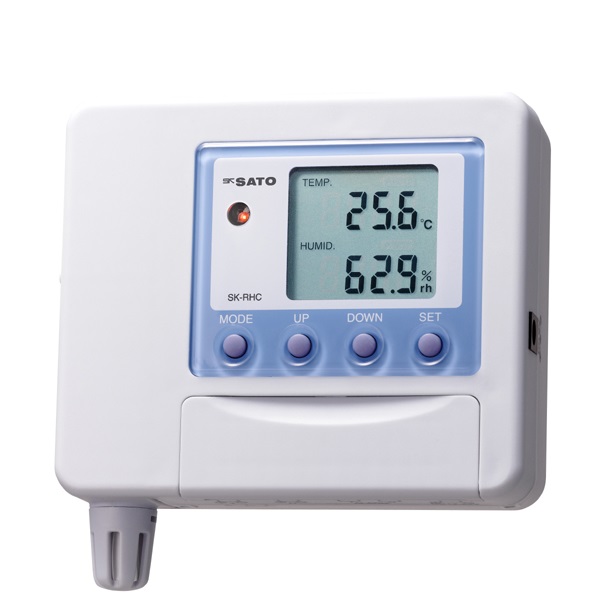

skSATO SK-RHC-V Temperature/Humidity Transmitter (0-100mV)

Output: Voltage (0 – 100mV)

Measuring range: Depends on the probe connected

Display range:

- Temperature : -15 to 65.0°C

- Humidity : 5 to 99.9%rh

Measuring accuracy: Depends on the probe connected

Output accuracy:

- Temperature :±0.3°C

- Humidity: ±0.3%rh

Resolution:

- Temperature: 0.1°C (at >-9.9°C); 1°C (at other range)

- Humidity: 0.1%rh (at >15%rh); 1%rh(at other range)

Display accuracy:

- Temperature: ±(0.1+1digit)°C

- Humidity :±(0.1+1digit)%rh

Output:

- Temperature: -10 to 60°C / -10mV to 60mV

- Humidity: 0 to 100%rh / 0 to 100mV

- Impedance: 500Ω

Power requirement: 12 to 24VDC or AC adapter (9VDC / 500mA)

Functions:

- Upper/lower limit output (relay contact)

(Max. rate of alarm output: Voltage resistance: 48VAC/DC continuous load current: 1A)

- Sampling( switchable at 1 sec. and 10 sec.)

Materials:

- Main body: ABS resin

- Display: Acryl resin

Dimensions/Weight: 118(W) x 100(H) x 42(D)mm, approx. 220g

Accessories: One fixing screw to fasten the probe
