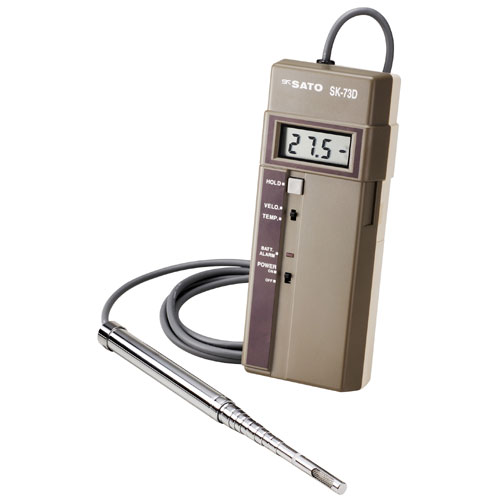

skSATO SK-73D Handy Type Hot Wire Digital Anemometer (0~30m/s; 0~80°C)

Measuring range:

- 0 to 30 m/s for air velocity

- 0 to 80°C for air temperature

Accuracy:

- ±(3% F.S. +1 digit) m/s for air velocity

- ±(0.5 +1 digit)°C for air temperature

Resolution:

- 0.1 m/s for air velocity

- 0.1°C for air temperature

Temperature compensation: 0 to 80°C

Operating ambient:

- Temperature: 5 to 45°C

- Humidity: less than 85%rh

Measurement object: Clean air at normal pressure and humidity

Power requirements: 7.5 VDC ("AA" size battery x 5)

Battery life: about 6 hours (continuous use at 30 m/s, at 25°C )

Sensor: Coated PT element

Dimensions:

- Main unit: (W) 84 x (H) 206 x (D) 42 mm

- Probe: Ø8 to 18.7 mm x (L) 180 to 930 mm (telescoping type)

- Cord: Ø6 x (L) 2 m

Weight: approx. 475 g (with batteries)

Material of case: ABS resin

Standard accessories: Soft pouch, "AA" alkali battery (LR6) x 5 pcs
