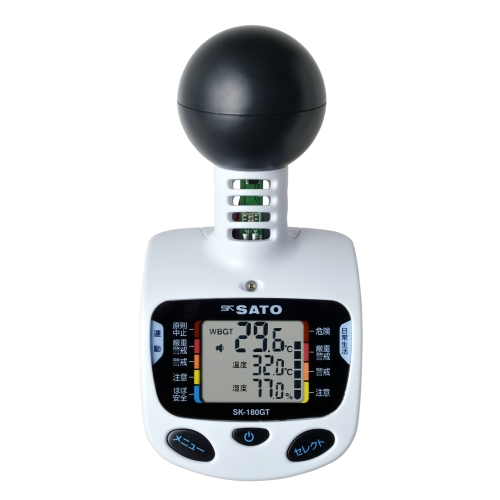

skSATO SK-180GT Heat Stress Monitor (0~50°C;10~95%rh)

Measuring Range:

Temperature: 0.0 to 50.0°C

Humidity: 10.0 to 95.0%rh

WBGT: 0.0 to 50.0°C

Globe temperature

(not shown): 0.0 to 60.0°C

Accuracy:

Temperature:

±0.6°C (20.0 to 40.0°C)

±1.0°C (other than above)

Humidity:

±5.0%rh (30 to 90% within 20 to 30°C)

±7.0%rh (other than above)

WBGT:

±2.0°C (20.0 to 40.0°C)

±3.0°C (other than above)

Globe temperature

(not shown):

±0.6°C (20.0 to 40.0°C)

±1.0°C (other than above)

Resolution: 0.1

Sampling Time: Approx. 20 seconds

Operation Ambient:

Temperature: 0 to 50°C

Humidity: Less than 95%rh (no condensing)

Wind speed: 0.3 to 3.0 m/s

Power Requirement: 3VDC

Lithium coin battery (CR2032) x2 in parallel connection

Battery Life: Approx. 6 months in continuous use if the alarm works twice a day

Buzzer Volume: Approx. 75 dB

Material: ABS resin for the case and the globe

Dimensions:

Body: (W) 60 x (H) 122 x (D) 25 mm

Globe: Ø40 mm

Weight: Approx. 70 g (including batteries)

Standard Accessories: Instruction manual, lithium coin battery (CR2032) x2, neck strap x1, carabiner x1, belt attachment parts x1, key ring x1

Optional Accessories: No.8310-90 Tripod for SK-180GT (Model ZF-400WSH)

Datasheet
