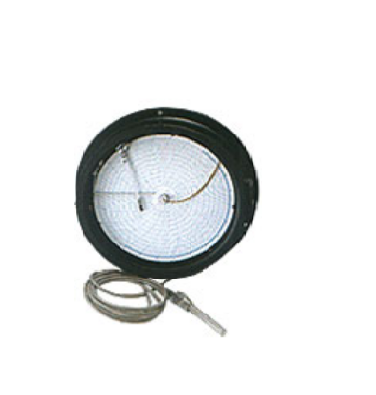

skSATO LSY-A1 Temperature Recorder (1-pen type; Ordered item)

Materials

- Case: Aluminum cast alloy (ADC)

- Finish: Melamine-baked plating

- Window: Glass

- Standard sensing bulb: SUS304

Union (SW) type connection (L = up to 200mm)

Screw: PT1/2

- Lead wire: SUS304 flexible tube (L= up to 3m)

Chart drive (select at ordering): AC type (100~200 VAC)

Quartz type (one C manganese battery)

Spring-wound type

Recording pen: No.7238-04 Cartridge pen (violet)

Accessories: One box (100 sheets/box) of chart, manual

A cartridge pen is factory set

PLEASE SPECIFY CHART DRIVE, TEMPERATURE RANGE AND CHART NUMBER AT ORDERING

Available temperature ranges and chart numbers:
