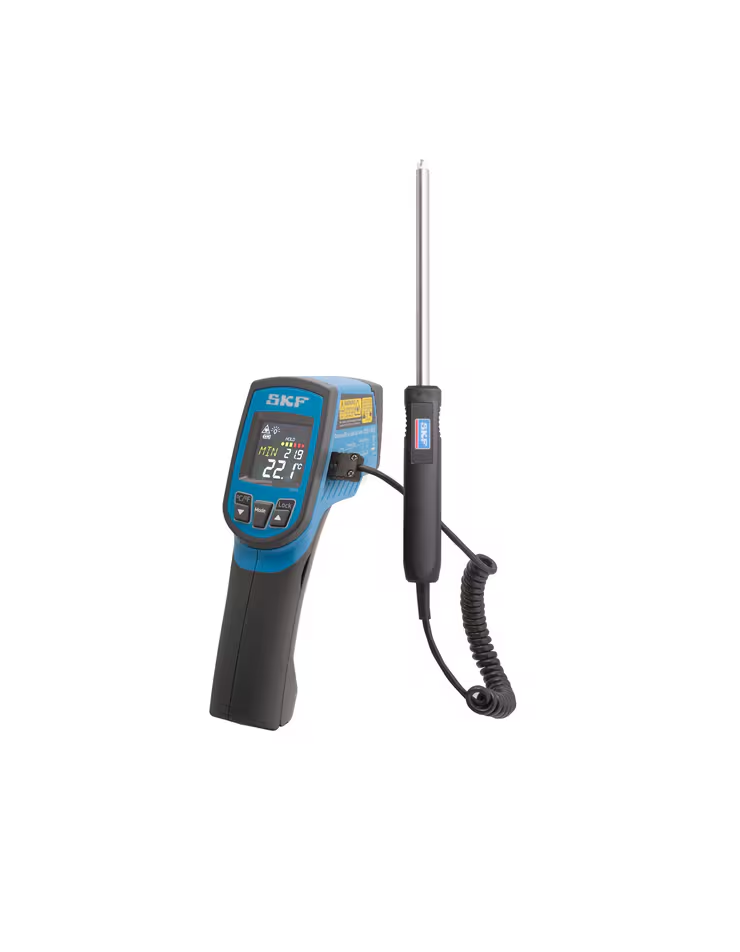

SKF TKTL 21 Infrared Thermometer (-60~760 °C, -64~1400 °C)

Dimensions

Case dimensions (l x h x w): 530 x 85 x 180 mm

Instrument dimensions: 119 x 172 x 48 mm

Performance

Distance to spot ratio: 30:1

Temperature range using infrared: -60~760 °C

Temperature range using probe: -64~1400 °C

Properties

Alarms: High and low level alarm with warning sound

Auto switch off: Automatic, 60 seconds after trigger release in IR mode and 12 minutes after trigger release in probe mode

Battery: 2x AAA (Alkaline (incl.) or Rechargable)

Battery life: 3 h

Content

1x IR thermometer (TKTL 21)

1x Temperature probe (TMDT 2-30)

2x AAA Alkaline batteries

1x instructions for use (MP5494)

1x carrying case (size X)

Degree of protection (IP): IP 30

Display: LCD Color with LED backlighting

Emissivity: 0.1~1

Housing material: PC/ABS blend

Instrument weight: 260 g

Laser power max: 1 mW

Laser type: 8 x red targeting laser dots

Laser wavelength: 635 nm

Measurement modes

Maximum

Minimum

Average

Difference (between min and max)

Probe/IR dual temperature

Operating temperature range: 0~50 °C

Power adapter: No

Probe: K type probe, TMDT 2-30 included (max. 900 °C)

Recommended applications: Used in applications where knowing the right temperature is key. E.g. rotating equipment monitoring, HVAC installations, food safety monitoring, fire detection/prevention, and plastic moulding

Recommended storage temperature: -10~60 °C

Relative humidity: 10 to 95%, non-condensing

Resolution

0.1 °C/F (below 999.9)

1 °C/F (above 1000)

Response time: 1 000 ms

Spectral response: 8~14 µm

Tripod connector: Yes, (1/4-20 UNC)
