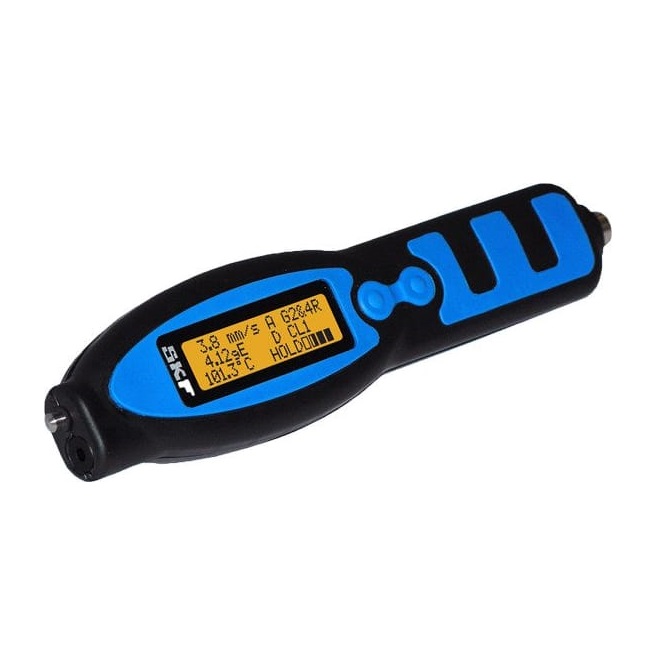

SKF CMAS 100-SL Vibration Meter

Velocity Range:

0,7 to 65,0 mm/s (RMS)

0.04 to 3.60 in/s (equivalent Peak) meets ISO 10816

Velocity Frequency: 10 to 1000 Hz, meets ISO 2954

Enveloped Acceleration Range: 0,2 to 50 gE

Enveloped Acceleration Frequency: Band 3 (500 to 10 000Hz)

Temperature range: -20 to +200 °C (-4 to +392 °F)

Infrared Temperature Accuracy: -/+2 °C (-/+3.6 °F)

Distance: Short range, max. 10 cm (4 in.) from target

Enclosure: IP 54 (Ingress Protection)

Weight: 125 g (4.4 oz.)

Dimensions (Lx W x H): 200,0 x 47,0 x 25,4 mm
