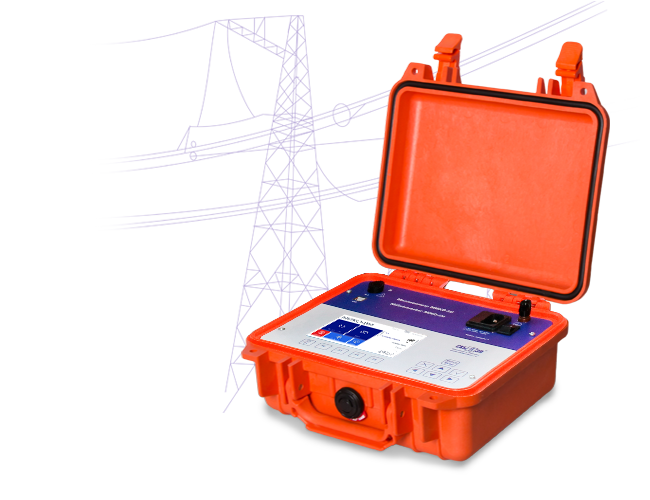

SKB MIKO-8MA Milliohmmeter (10A)

SpecificationsValue Resistance range:10 µOhm ÷ 10 kOhm

Maximum permissible intrinsic error of resistance measurement:±(0.1% + 0.5 µOhm)

Best resolution:0.1 µOhm

Measuring current intensity, А:0.005 ÷ 10

Relative drift of measuring current intensity, %/s:±0.002

Amperage measurement range in the DRM mode, A:0.1 ÷ 10

Limits of allowable main and relative error of amperage measurement in the DRM mode:±1 %

Maximum consumed power, W:120 Maximum output capacity, W60

Mains voltage: AC (valid value):90 ÷ 253V

Mains voltage: DC127 ÷ 354V

Period of charging a completely discharged battery, not to exceed:3 hrs

Type of data transmission channel:USB, Bluetooth

IP rating in operating state:IP40

IP for transportation:IP67

Operating temperature range, ºС:-20 ÷ +55

Maximum measuring unit weight with battery, kg (MIKO-8MA):4.0

Maximum measuring unit weight without the battery, kg (MIKO-8M):2.7

Dimensions, mm:270х250х130

Interface language:English

User manuals language:English

Calibration interval, year:3

- Standard Accessories
+ MIKO-8MA with measuring Cable СКБ032.00.00.000, Alligator type clamps with the jaw up to 80mm. Length 8.5m
+ Main Power Cable СКБ031.23.00.000
+ Ground Wire СКБ010.01.00.000
+ Zero Resistance СКБ023.15.00.000
+ Shunt 75ШСММ3
+ VP2B-1V-2А cut-out (2 pcs.)
+ USB Cable 2.0 A-B
+ Carring Case СКБ126.06.02.000

- Optional Accessories:

+ Measuring cable СКБ032.18.00.000
+ Measuring cable СКБ032.12.00.000
+ Measuring cable СКБ032.19.00.000
+ Measuring cable with a fast-switching ground clamp СКБ032.26.00.000
+ Measuring cable extension СКБ031.20.00.000
+ Potential clip contact СКБ23.21.00.000/-01
+ Short-circuiting cable with a ground clamp СКБ032.13.00.000/-01/-02
+ Short-circuiting cable СКБ035.31.00.000
+ Additional resistor СКБ032.25.00.000
+ Battery power cable СКБ031.17.00.000
+ Reference inductor adaptor СКБ023.12.00.000
+ Software
+ Cable and documentation bag СКБ126.06.00.000
+ Manipulating rod
СКБ010.41.00.000
СКБ010.41.00.000-01
СКБ010.41.00.000-02

Datasheet
