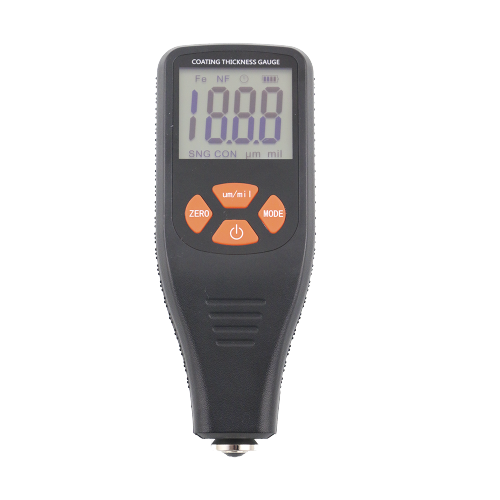

Jeweltest TC-125 Coating Thickness Gauge (0-4000um)
ManufacturerJeweltest(View more products from this manufacturer)
ModelTC-125
USD 122.40
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Measuring range: 0-4000um
Accuracy: ± [(1%~3%)H+1um] Note: H is the thickness reading
Resolution: 1μ or 1% of true value
Minimum measuring area: φ15
Minimum curvature:
- Convex radius: 5mm
- Concave radius: 25mm
Thinnest substrate: Fe: 0.2mm; NFe: 0.05mm
Size: 112×69×28mm
Weight: 82g (without battery)
Power: 4 1.5VAAA batteries
Operation environment:
- Temperature: -10℃~40℃
- Humidity: 20%~90%RH No strong magnetic field environment
