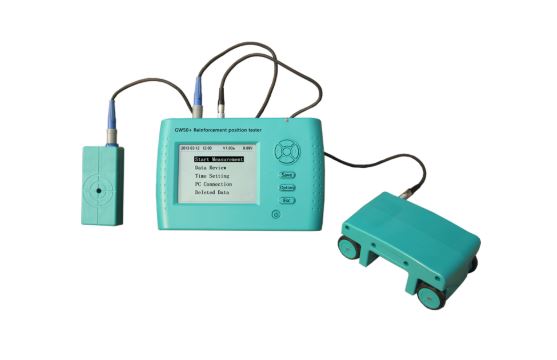

SJJW GW50(+) Reinforcement Position Tester

Investigation depth could reach 180mm

Single comprehensive probe. No need to replace during test.

back-lit screen let instrument can be normal used under the condition of insufficient light

Machine software is complete .The report could be printed automatically connecting with computer

Work environment condition :

No strong alternating electromagnetic field

No corrosive gas in the air.

Avoid larger vibration and impact

Avoid the LCD panel contact with sunlight directly

Product usage

Testing concrete cover thickness

Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.

Estimation bar diameter

Detection of Cable and Plumbing pipe

Technical Specification :

Bar diameter application range(mm) : Φ6 – Φ50

Maximum value permissible error of Bar diameter : ≤±1

Protective layer thickness measuring range

The first measuring range (mm) : 6 - 90

The second measuring range (mm) : 7-180

The maximum error of reinforced protective layer thickness test value

The first measuring range (mm) :

6 - 59 (≤±1)

60 - 69 (≤±2)

70 -90 (≤±4)

The second measuring range (mm) :

7 - 79 (≤±1)

80 - 119 (≤±2)

120 - 180 (≤±4)

Standard Delivery : Main unit, Software, USB connecting cable, Power charger, Carborundum stone, Instruction manual, Warranty card

Optional Accessory : Printer, Power Charger for printer (9V/2A)
