Jeweltest CK102 Crack Width Instrument (0-6mm; >0.01mm)

The maximum detection range of 0-6mm

Accuracy: better than 0.01mm

Magnification: 40times

The Operating Temperature: -20~60°C

Host Interface: standard USB;

The storage media: can be stored for more than 3000 photos (SD Card is free to expand);

Image storage format: BMP format, 24 bit color / 320×240;

Power supply: lithium battery, standby time: 18 hours;

Size: Host 113x70x16.5mm;

Probe: 48x56x58mm;

Weight: host 100 grams, 100 grams of the probe.

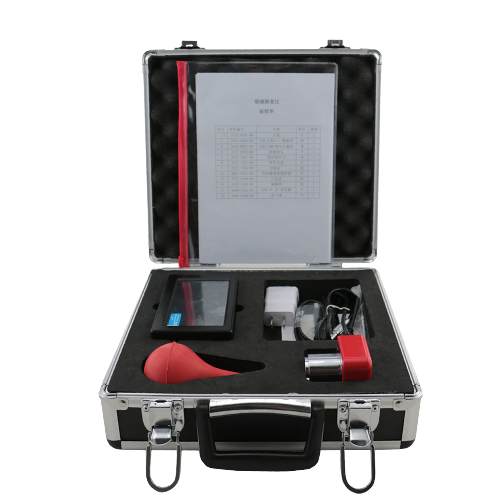

Standard delivery

- A handheld host: 1

- A probe (with 1.5 m cable): 1

- A quick charger: 1

- Blowing a balloon: 1

- An aluminum carrying case: 1

- Manual and warranty card: 1

- Software: 1

Brief Introduction

JW-CK102 series of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width.

Features

1. An automatic interpretation of the crack width, directly to the crack width values are displayed on the screen;

2. Automatic shooting crack photos, real-time image display;

3. Stored photos, data can be playback viewing;

4. probe (camera) comes with lighting fixtures, work around the clock, from the light changes;

5.Simple alignment of cracks can be automatically reading, without any set up, fool operation;

6.Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card;

7.The only in the cracks in the photo while preserving fracture images, the width of the data, scales, zoom factor and the crack number;

9 .Host and the probe share a lithium battery-powered.

10. Reference specification: GJG125-99 "dangerous building appraisal standards.
