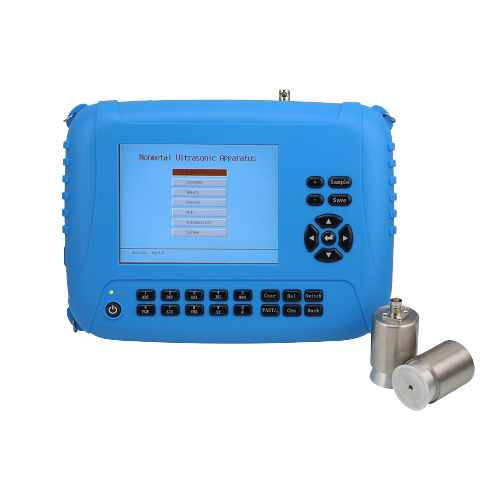

Jeweltest CJ-10 Nonmetal Ultrasonic Detector (60m/s)

Main control unit: high-performance Embed Computer

Display: 640×480 High brightness TFT Panel

Input: Keyboard

Storage: 1G (Internal)＋2G (U-Disk)

Interface: USB

Receive channel: One

Max sample data length: 64k

Trigger mode: Continuous trigger, External trigger

Trigger voltage (V): 65, 125, 250, 500, 1000 selectable

Receive sensitivity: ≤30μv

Amplifier gain: 82dB

Amplifier bandwidth: 5KHz~500kHz

Sample Periods: 0.05μs~6.4μs，8 grades electable

Sound time accuracy: 0.05μs

Amplifier resolution: 0.39%

Power

- Interior lithium battery，work more than 6 hours

- External lithium battery，work more than 6 hours (select)

- Weight: 1.75kg (include lithium battery)

- DC 12V

- AC 100V~240V, 50/60Hz

Size: 260mm×185mm×60mm

Temperature: -10℃~+40℃

Performance

- High efficient testing. Lifting speed is more than 60m/s.( 20 cm distance )。

- Display the test data graphically. User can watch analyze result directly；

- Fast and precise Automatic judge the sound parameters. Real-time wave display to assure test efficiency;

- Humanized software design. Software design apply to User and construction plant. its help information ensure user handle easily；

- Linking the rebound apparatus directly. Detecting strength of concrete by ultrasonic-rebound combine method with linking rebound apparatus directly，and get strength of concrete in time. The functions apply for national patent.

- Being sensitive to receiving signal. Can receive signal more than 10m in concrete without defects

- Can supply smooth power for radial energy transducer needless external power.

- Standard USB storage with big capacity.

- Interior lithium battery supply power for apparatus work more than 6 hours.

- Portable, small, light apparatus (1.75Kg).

- Extending function for testing thickness of concrete by impacting echo method.

- Professional and powerful analysis software on windows system. It can export the data to  Excel or word for advanced analysis
