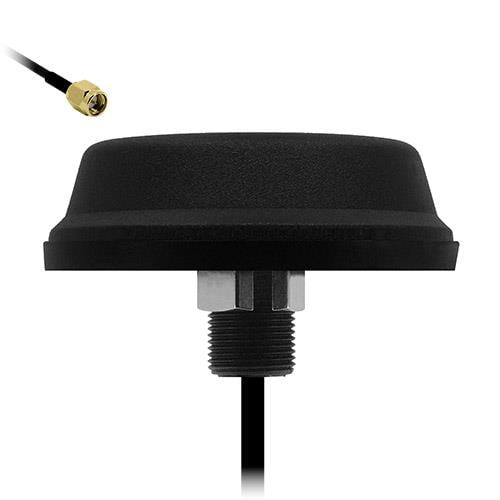

Siretta TANGO44/2.5M/LL/SMAM/S/S/19 Passive Antenna 5G/4G/DUAL BAND WI-FI/BLUETOOTH/LORA/SIGFOX PUCK ANTENNA SMA MALE CONNECTOR 2.5M LOW LOSS CABLE

Gain: 1 dBi, 4 dBi

VSWR: 2.3

Style: Puck

Length: 23 mm

Diameter: 80 mm

Frequency: 700 MHz to 960 MHz, 1.575 GHz to 2.7 GHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 2.5 RG174

Application: Cellular Applications, Wireless Applications

Unit Weight: 100 g

Cable Length: 2.5 m

Polarization: Linear Vertical

Power Rating: 50 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Frequency Range: 700 MHz to 2.7 GHz

Number of Bands: 2 Band

Center Frequency: 750 MHz, 800 MHz, 900 MHz, 1575 MHz, 1602 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2400 MHz, 2500 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 700 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
