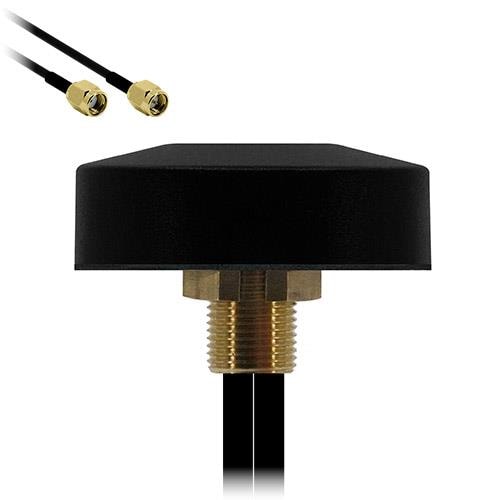

Siretta TANGO43/0.5M/SMAM/SMAM/RP/S/S/17 Passive Antenna LTE + WIFI COMBINED BOLT THRU ANTENNA 0.5M CABLES SMA MALE RP CONN (WIFI) SMA MALE CONN (LTE)

Gain: 2 dBi

VSWR: 1.5

Style: Puck

Length: 14.5 mm

Diameter: 46 mm

Frequency: 1880 MHz to 1900 MHz, 2400 MHz, 2575 MHz to 2635 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 500 mm RG174

Application: Cellular Applications, Wireless Applications

Unit Weight: 90 g

Cable Length: 0.5 m

Polarization: Vertical

Power Rating: 60 W

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Frequency Range: 1.88 GHz to 2.635 GHz

Number of Bands: 3 Band

Center Frequency: 1.89 GHz, 2.4 GHz, 2.6 GHz

Mechanical Style: Module

Maximum Frequency: 2.635 GHz

Minimum Frequency: 1.88 GHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Protocol - Cellular, NBIoT, LTE: 2G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GPRS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
