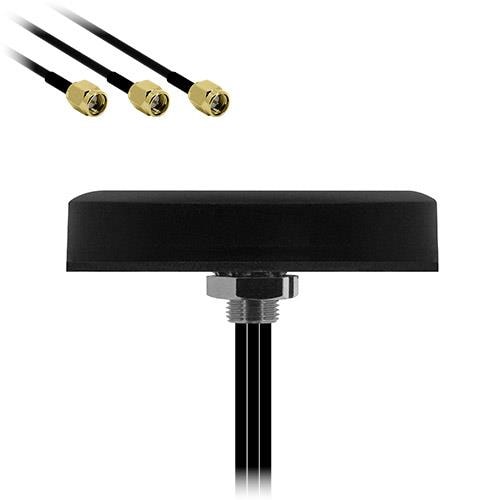

Siretta TANGO22/3M/SMAM/SMAM/SMAM/26 Passive Antenna GPS/WIFI/GSM/3G COMBI ANTENNA WITH 3 X 3M RG174 CABLES AND SMA M CONNECTORS

Gain: 2 dBi, 5 dBi, 28 dB, 3 dBi

VSWR: 3, 1.5, 2, 2

Style: Dome

Length: 14.5 mm

Diameter: 84 mm

Frequency: 698 MHz to 960 MHz, 1.71 GHz to 2.7 GHz, 2.4 GHz to 2.4835 GHz

Impedance: 50 Ohms

Cable Type: 3 M RG174

Application: Cellular Applications, Wireless Applications

Unit Weight: 225 g

Cable Length: 3 m

Polarization: Linear, RHCP

REACH - SVHC: Details

Mounting Style: Direct / Permanent Mount

Frequency Range: 698 MHz to 2.7 GHz

Number of Bands: 4 Band

Center Frequency: 700 MHz, 750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2450 MHz, 2500 , 1575 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, GRPS, PCS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
