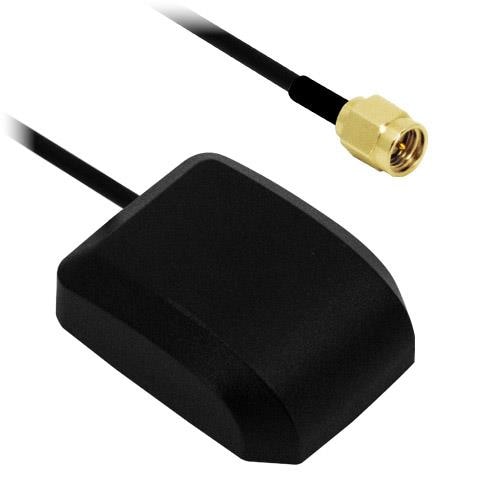

Siretta MIKE3A/5M/SMAM/S/S/17 Active Antenna MAG MOUNT GPS 28DB ANTENNA WITH 5M CABLE AND SMA MALE CONNECTOR

Gain: 28 dB

VSWR: 1.5:1, 2

Style: Panel, Square

Width: 36.5 mm

Height: 16.5 mm

Length: 48.5 mm

Frequency: 1.57542 GHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 5 M RG174

Application: Satellite Applications

Unit Weight: 91 g

Cable Length: 5 m

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: Magnetic Mount

Number of Bands: 1 Band

Center Frequency: 1.57542 GHz

Mechanical Style: Whip

Maximum Frequency: 1.57842 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
