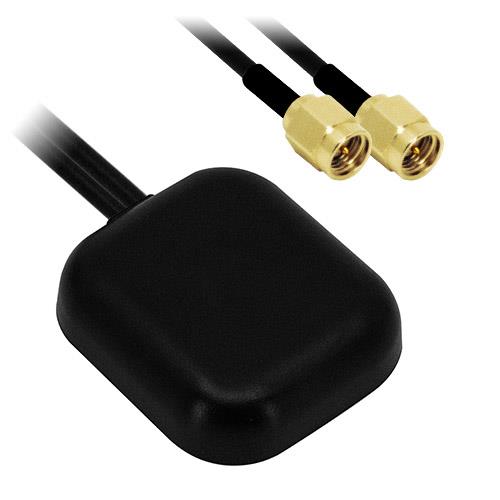

Siretta MIKE16/2.5M/SMAM/SMAM/S/S/26 Vehicle Antennas SMALL MAGNETIC MOUNT GPS/GLONASS & GSM ANTENNA 2.5M CABLE SMA MALE CONNECTOR

Gain: 28 dB

VSWR: 2.5, 1.5

Width: 53 mm

Height: 15 mm

Length: 60 mm

Frequency: 824 MHz to 960 MHz, 1710 MHz to 2170 MHz, 1575.42 MHz

Impedance: 50 Ohms

Cable Type: RG174

Application: GPS/GLONASS, GSM

Cable Length: 2.5 m

Polarization: Linear, RHCP

Mounting Style: Magnetic Mount

Frequency Range: 824 MHz to 2.17 GHz

Number of Bands: 3 Band

Center Frequency: 1.57542 GHz

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: SMA Male

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GLONASS, GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: GSM
