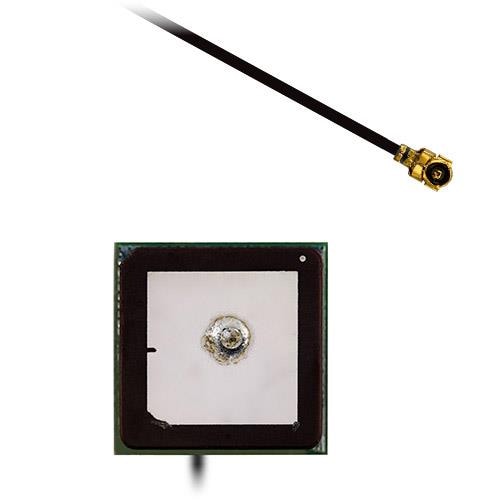

Siretta ECHO26A/0.1M/IPEX/S/S/15 Active Antenna 18X18MM 27dBi GPS INTERNAL ACTIVE ANTENNA WITH 0.1M 1.13mm CABLE IPEX CONNECTOR

Gain: 27 dB

VSWR: 2.0:1

Style: Ceramic

Width: 18 mm

Height: 6.6 mm

Length: 18 mm

Frequency: 1.57542 GHz

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Application: Satellite Applications

Unit Weight: 5 g

Cable Length: 0.1 m

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: PCB Mount

Frequency Range: 1.574397 GHz to 1.576443 GHz

Number of Bands: 1 Band

Center Frequency: 1.57542 GHz

Mechanical Style: Patch

Maximum Frequency: 1.576443 GHz

Minimum Frequency: 1.574397 GHz

Termination Style: Connector

Antenna Connector Type: U.FL

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C
