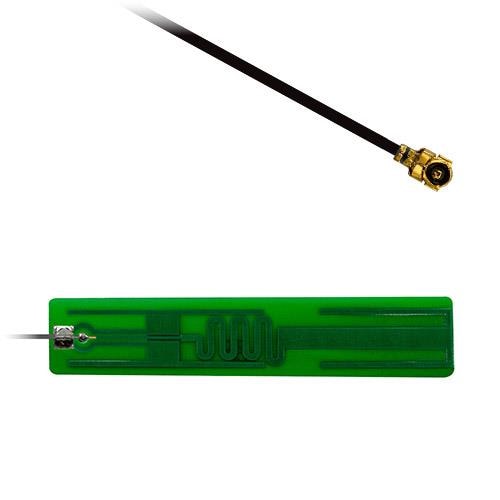

Siretta ECHO14/0.2M/UFL/S/S/15 Passive Antenna 5G/4G/DUAL BAND WI-FI COMPACT PCB EMBEDDED ANTENNA 200MM CABLE AND U.FL CONNECTOR

VSWR: 1.8:1

Style: I-Bar

Width: 20 mm

Height: 1 mm

Length: 105 mm

Frequency: 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz to 2500 MHz, 2500 MHz to 2700 MHz, 3300 MHz to 3600 MHz

Impedance: 50 Ohms

Cable Type: 200 mm RF1.13

Application: Cellular Applications, Wireless Applications, ISM Applications

Unit Weight: 5 g

Cable Length: 200 mm

Polarization: Vertical

REACH - SVHC: Details

Mounting Style: PCB Mount

Frequency Range: 800 MHz to 3.6 GHz

Number of Bands: 4 Band

Center Frequency: 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2300 MHz, 2600 MHz, 3450 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 3.6 GHz

Minimum Frequency: 800 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: U.FL

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
