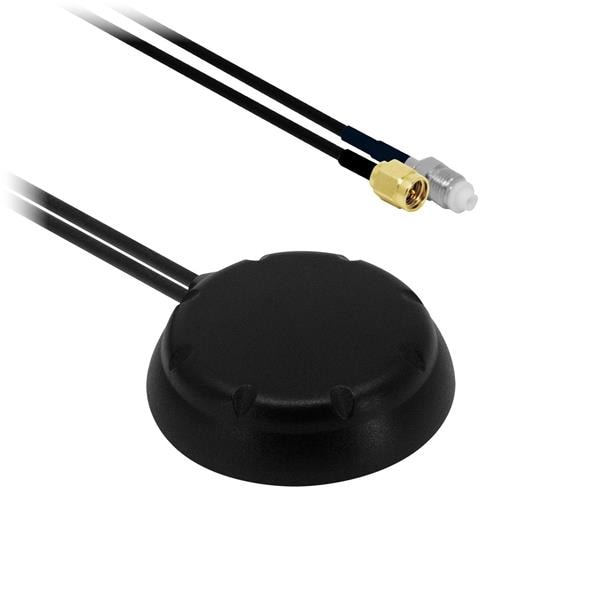

Siretta ALPHA7/4M/FMEF/SMAM/S/S/11 Indoor Antennas ALPHA 7 SERIES GPS/GSM 26DB GAIN ANTENNA 4M CABLE (GSM) FME FEMALE (GPS) SMA M

Gain: 26 dB

VSWR: 2, 2

Style: Puck

Height: 15.5 mm

Length: 50 mm

Frequency: 900 MHz, 1.8 GHz

Impedance: 50 Ohms

Cable Type: RG174

Application: GPS/GSM

Cable Length: 4 m

Polarization: Vertical, RHCP

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Frequency Range: 900 MHz to 1.8 GHz

Number of Bands: 2 Band

Maximum Frequency: 1.8 GHz

Minimum Frequency: 900 MHz

Termination Style: FME Female, SMA Male

Antenna Connector Type: FME Female, SMA Male

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: GSM
