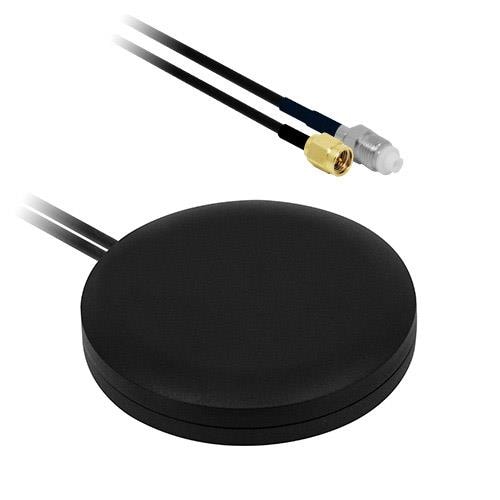

Siretta ALPHA6/2M/SMAM/S/S/FMEF/S/S/7 Vehicle Antennas COMBINED QUAD BAND GSM/GPS ANTENNA. 2M CABLE SMA MALE (GPS) & FME FEMALE (GSM) CONNECTORS.

Gain: 5 dBi, 28 dBi

VSWR: 1.5, 2, 2.5

Style: Puck

Width: 14.5 mm

Length: 71.5 mm

Frequency: 824 MHz to 960 MHz, 1710 MHz to 2170 MHz, 1575.42 MHz

IP Rating: IP66

Impedance: 50 Ohms

Cable Type: RG174

Application: GSM/GPS

Cable Length: 2 m

Polarization: Linear, RHCP

Mounting Style: Adhesive Mount

Frequency Range: 824 MHz to 2.17 GHz

Number of Bands: 4 Band

Center Frequency: 1.57542 GHz

Maximum Frequency: 2.17 GHz

Minimum Frequency: 824 MHz

Termination Style: SMA Male, FME Female

Antenna Connector Type: SMA Male, FME Female

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: GSM
