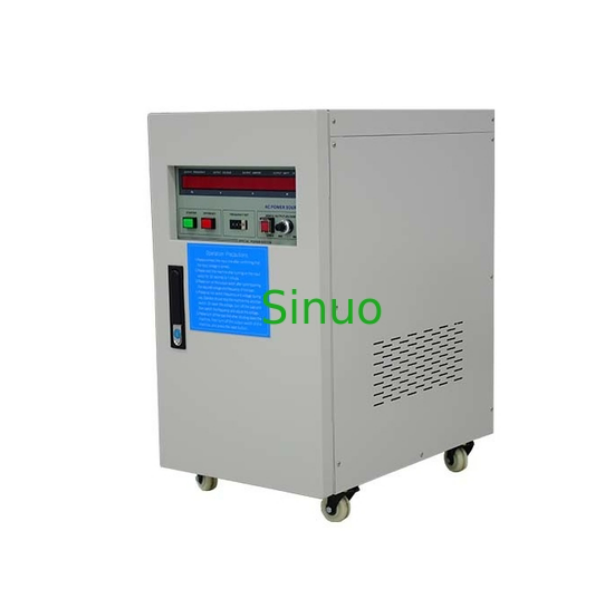

Sinuo SNP-5KVA Single Phase AC Power Supply 5KVA IEC 61800-2 Used For Household Appliances (220V, 5KVA)

Output capacity: 5KVA

AC input

Input Phase: Single phase

Waveform: SINEWAWE

Voltage: 220V±15%

Frequency fluctuation range: 50 or 60HZ±10%

power factor: ﹥0.9

AC output

Output Phase: Single phase

Waveform: SINEWAWE

Low gear voltage: 0-150V continuously adjustable

High gear voltage: 0-300V continuously adjustable

Frequency: 50Hz, 60Hz, 40-499.9HZ continuously adjustable

Frequency stability: ≤0.01%

High gear maximum current (A): 21A (150-300V)

Low gear maximum current (A): 42A (0-150V)

Whole machine performance

Power regulation rate: ﹤1%

Load regulation rate: ﹤1%

Waveform distortion: ﹤2% (under line resistive load)

Insulation resistance: DC500V≥20MΩ

Withstand voltage insulation: AC 1800V 5mA/1 min

Efficiency: ﹥85%

Response time: ≤2ms

Crest Factor: 3:1

Display

Display interface: Digital LED display

Voltage: 4 digits, digital voltmeter, resolution 0.1V

Current: 4 digits, digital ammeter, resolution 0.1A

Power: 4 digit, digital wattmeter

Frequency: 4 digit number, digital frequency meter

Equipment dimensions: H*D*W 675*530*350

Equipment weight: 70kg
