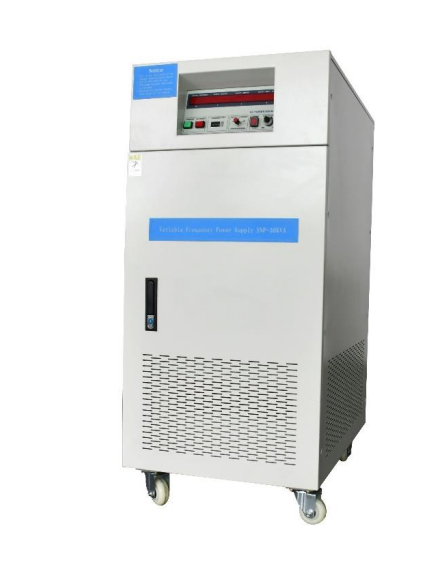

Sinuo SNP-30KVA Variable Frequency Power Supply (30KVA)

Output capacity: 30KVA

AC input

Phase number: Three phase

Waveform: SINEWAWE

Voltage: 380V±15%

Frequency fluctuation range: 50HZ or 60HZ±15%

Power factor: ﹥0.9

AC output

Phase number: Three phase

Waveform: SINEWAWE

Low gear voltage: 0-260V continuously adjustable

High gear voltage: 0-520V continuously adjustable

Frequency: 50Hz, 60Hz, 40-499.9HZ continuously adjustable

Frequency stability: ≤0.01%

High gear maximum current (A): 83.3A

Low gear maximum current (A): 41.7A

Whole machine performance

Power regulation rate: ﹤1%

Load regulation rate: ﹤1%

Waveform distortion: ﹤2% (under line resistive load)

Insulation resistance: DC500V≥20MΩ

Withstand voltage insulation: AC 1800V 5mA/1 min

Efficiency: ﹥85%

Response time: ≤2ms

Crest Factor: 3：1

Protection device: With multiple protections such as overvoltage, overcurrent, overload, input undervoltage, overtemperature, short circuit, etc

Display

Display interface: Digital LED display

Voltage: 4 digits, digital voltmeter, resolution 0.1V

Current: 4 digits, digital ammeter, resolution 0.1A

Power: 4 digit, digital wattmeter

Frequency: 4 digit number, digital frequency meter
