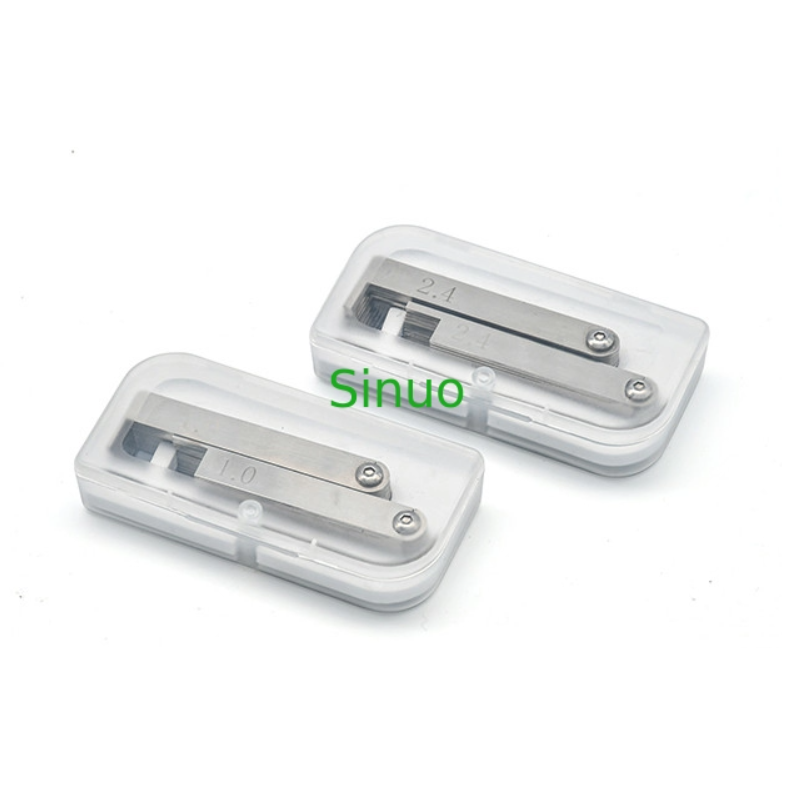

Sinuo SN2134 IEC 60598-1 Creepage Distance Test Card For Measuring The Creepage And Clearance Distance

Sample range: Electric appliance conductive parts

Test purpose: Suitable for measuring the distance between two conductive parts or between a conductive part and the accessible surface of the appliance along the surface of the insulating material

Test principle: Stainless steel claw type to verify the creepage distance between conductive parts

Size: 1.0, 1.05, 1.1, 1.2, 1.25, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 2.0, 2.1, 2.2, 2.4, 2.5, 2.8, 3.2, 3.6, 4.0, 4.2, 4.5, 5.0, 5.6, 6.3, 7.1, 8.0, 9.0, 10mm

Specification: One set for straight and curved

Material: Stainless steel plate
