Sinuo SN1401 IEC 60335-2-7 Durability Test Equipment For Electric Washing Machine Doors (AC220V/60Hz, 3KW)

Product Information For Washing Machine Door Endurance Testing Equipment:

- Standard: Complies with clause 18.101 of IEC60335-2-7:2016.

- Uses: It is used to test the durability of the interlock device of the washing machine door or lid, and the force test when the interlock device operates to verify the reliability of the interlock device. It is also used to assist the repeated opening and closing of the door or lid of the washing machine other tests.

- Test samples: electric tumble dryer, electric washing machine (including impeller and tumbler).

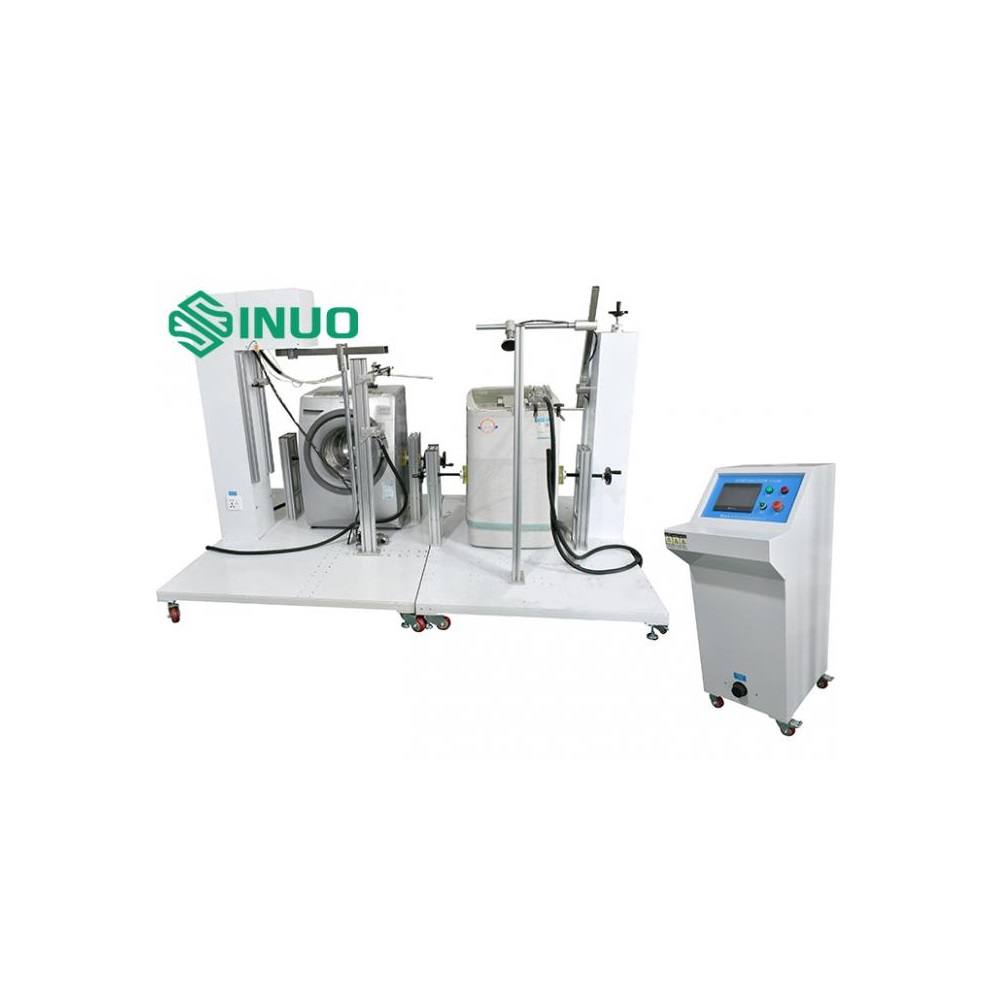

- Structure: The equipment consists of electrical control cabinet (including load voltage regulating device), rack and manipulator. There are two test stations, one is a drum washing machine with a door, and the other is a washing machine with a lid top, and the two workstations can conduct tests independen

Power supply: AC220V/ 60 Hz, power 3KW (can match customer power supply requirements)

Test station: 2 independent workstations, one for front-load washing machine with door and another for top-load washing machine with lid

Control method: PLC intelligent integrated control, 7-inch touch interface operation

Drive mode: Servo motor drive

Sample clamping method: Vacuum Suction Cup, Pneumatic

Door/cover opening or closing speed: 0-360°/s(1.5m/s), can be preset

Door/cover opening or closing angle: 0-130°, can be preset

Test time: 0-999999 times, can be preset

Door/cover opening or closing force: 0-200N, can be preset

Load voltage: 0-250V, adjustable

Equipment size: about: (W*D*H) 2500 * 1200 * 1500 (mm)

Equipment weight: 280kg
