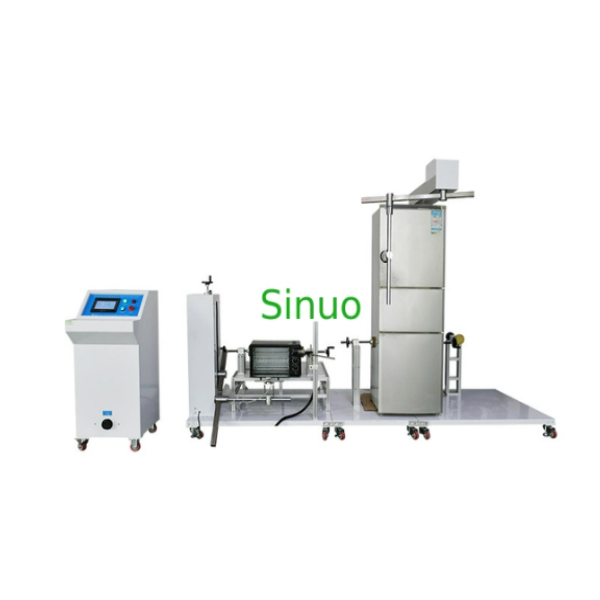

Sinuo SN1201C IEC60335-2-25 Microwave Oven Door Refrigerator Door Endurance Test Machine (AC220V)

Power Supply: AC220V±10%/ 60 Hz, power 3KW (can be customized)

Test Station

Two stations:

One station for testing ovens with door opening up and down

The other station for testing ovens with door opening left or right, and Refrigeration appliances with door opening left or right

Control Mode: PLC intelligent integrated control, 7-inch humanized touch interface operation

Drive Mode: Servo motor drive

Clamping Method for Specimen: Suck the door of sample by vacuum suction cup, pneumatic

Door Opening or Closing Speed: 0-360°/s, can be preset

Door Opening or Closing Angle: 0~180° can be preset

Test Times: 0-999999 times, can be preset

Load Voltage: 0-250V, adjustable, Equipped with 2 sockets for powering on samples

Test Contents

Microwave oven door mechanical endurance test (IEC 60335-2-25 clause 18)

Refrigerator door interlocking device endurance test (IEC60335-2-24:2017)

Safety Protection

Power: Leakage protection, overload and short circuit protection

Motor: Overload, short circuit protection
