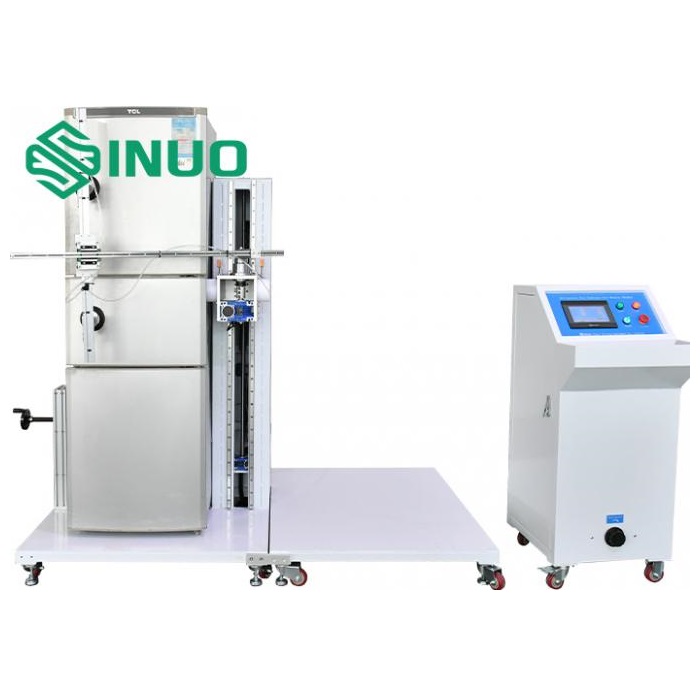

Sinuo SN1201A IEC60335-2-24 Household Appliance Refrigerated Door Endurance Test Machine (AC220V/50-60 Hz, 3KW)

Application:It is used to test the durability of the interlocking device of the door for vertical refrigerators, also used to assist other tests for door repeated opening and closing operations of refrigerators, such as the defrost test and refrigerant leakage test.

Power Supply: AC220V±10%/ 50 Hz-60 Hz, power 3KW

Power Supply: AC220V/50 Hz

Test Station: Single Station

Control Mode: PLC Intelligent Control

Drive Mode: Servo Motor Drive

Test Times: 0-999999 Times

Load Voltage: 0-250V, Adjustable

Dimensions: (W*D*H) 1500*1300*2000mm

Equipment Weight: 250kg

Datasheet

Test Principle and Equipment Structure For Refrigerated Door Endurance Test Machine:

Test principle: The on/off actions of the interlocking device are controlled through developed program, the manipulators are driven by servo motor to reciprocating open and close the door(s) at a certain speed with vacuum suction cup sucking on the door, thus, to verify the stability of the interlocking device.

Structure: The equipment combines of electrical control cabinet (including load voltage regulating device), frame, manipulator and vacuum suction cups.
