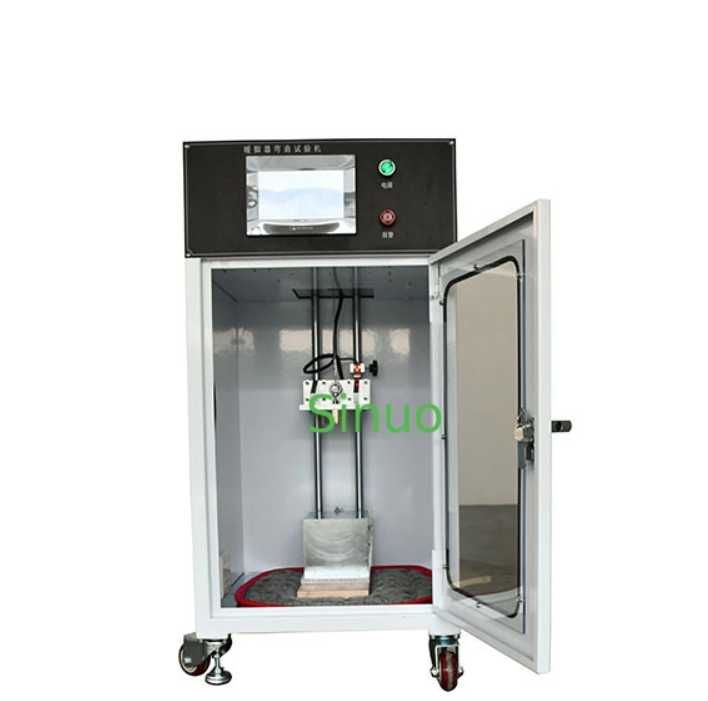

Sinuo SN1121 Foot Warmers Flexing Test Equipment IEC 60335-2-81 Figure 101

Power supply: Match client’s local power supply requirements

Test times: 0~9999, can be set on the touch screen. Default 1000 times.

Drop frequency: 6 times/min, can be preset

Load weight: 30KG (total mass of weight, board and connecting supports)

Drop height: 200mm

Plywood board: Dimensions approximately 300*150*20mm with rounded edges

Operation mode: The electromagnet absorbs the weight and lifts it to 200mm height and then automatically releases the weight to impact the sample

Alarm function: With the power-on test function, it can realize the alarm function of disconnecting the circuit load of the sample

Control: This equipment adopts PLC control, touchscreen operation and motor
