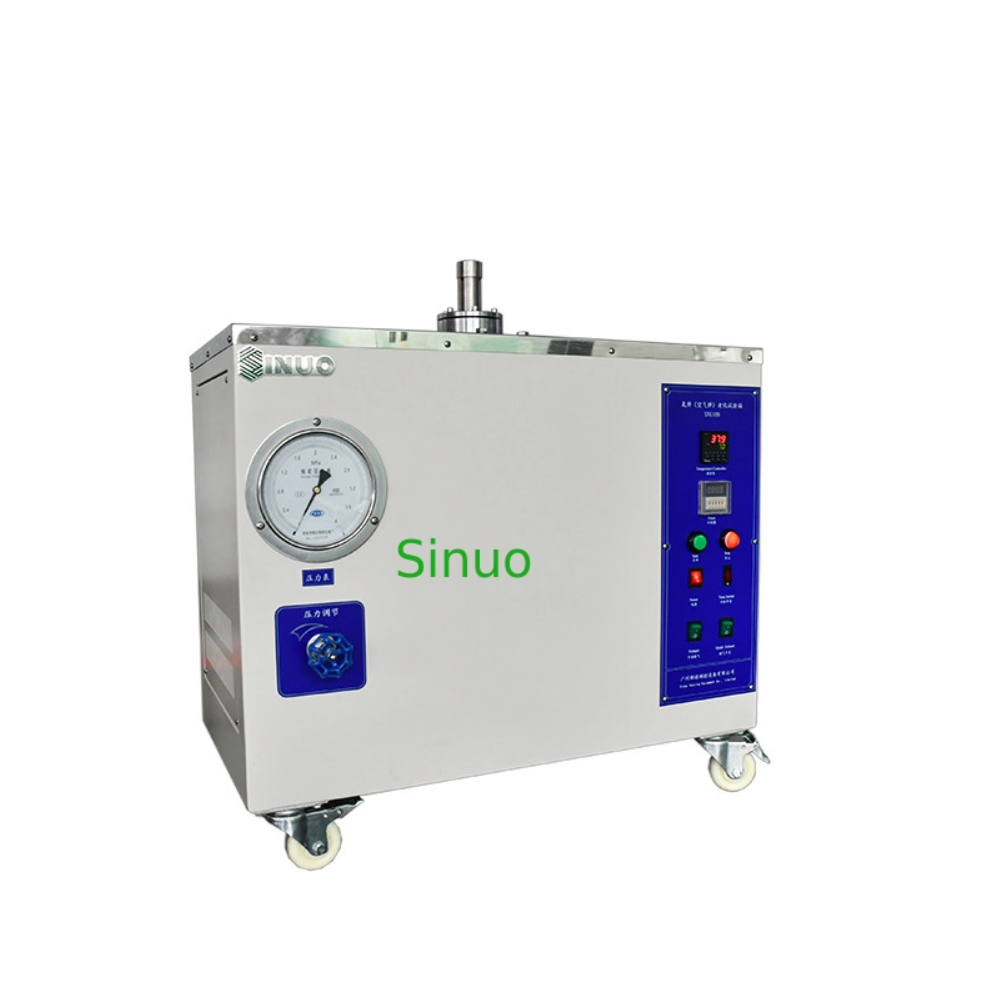

Sinuo SN1109 IEC 60335-1 Oxygen Bomb Aging Test Chamber For Household Appliances (AC220V±10%, 50-60Hz, 0.5KW)

Power supply: AC220V±10%/50-60Hz, compressed air 5~7kg/cm2, 0.5KW

Power supply voltage: 220V (AC) ± 10%

Maximum working pressure: 2.5MP

Safe bursting pressure: 2.7~3.3MP

Temperature automatic control range: room temperature 0~200 °C

Box size: 560×420×670mm

Tank volume: 4000cm3

Heater power: 2.4KW

Temperature alarm: 0~200°C adjustable

Temperature deviation: ±0.5 °C

Temperature control: digital display

Temperature control: intelligent control

Tank material: stainless steel inside, electrostatic spraying of cold-rolled steel plate outside

Tank size: diameter 123× height 337mm

Product Introduction For Air/Oxygen Bomb Test Apparatus:

Standard:Conforms to IEC 60811-412, IEC60335-1:2004 clause 22.32, IS: 9968 (Part 1 & 2), IS: 6380, IS: 10810-16, etc.

Application:It is applicable for the aging test of the electric wire, the insulation layer and sheath of the rubber (plastic, artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.

Structural principles:Adopt inner and outer box structure,sample suspended in oxygen tank,purity of oxygen supplied no less than 97%,pressure to 2.1±0.07 MPa ,temperature maintained at 70°±1°±C, aging test for 96hours in this state.

Test Principle: Adopts the servo motor to drive the turntable, to make the specimen to swing left and right, the test will be automatically stopped when the test cycles reach the preset value.
