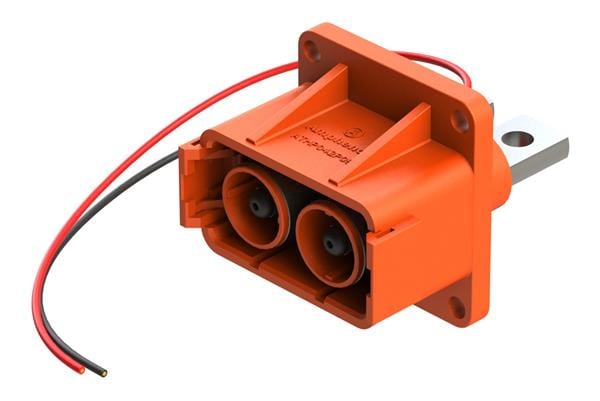

Amphenol SINE Systems ATHP042P08EL16-H1 Receptacles 2 POSITION EMC REC HIGH VOLTAGE LOOP
ModelATHP042P08EL16-H1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
IP Rating: IP67
Housing Color: Orange
Contact Gender: Pin (Male)
Current Rating: 180 A
Housing Gender: Female
Mounting Angle: Straight
Mounting Style: Panel
Number of Rows: 1 Row
Voltage Rating: 1 kV
Wire Gauge Max: 18 AWG
Contact Plating: Silver
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: Solder Lug
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Insert / Contact Gender: Pin (Male)
Maximum Operating Temperature: + 130 C
Minimum Operating Temperature: - 40 C
