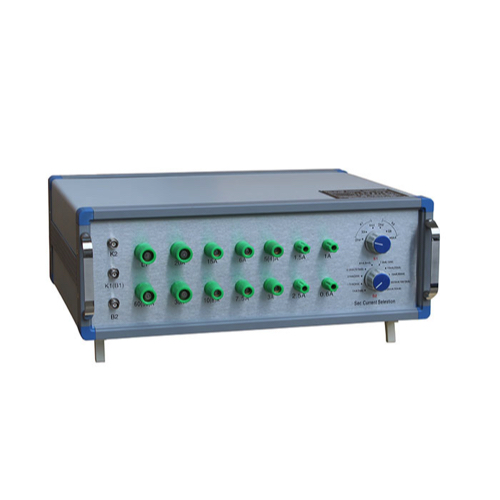

Sincere HLW-3 Two-Stage Standard Current Transformer (0.6, ..., 60A; 1, ..., 50mA)

Frequency: 50Hz / 60Hz

Primary Current (A): 0.6, 1, 1.5, 2.5, 3, 4, 5, 6, 7.5, 8, 10, 15, 20, 30, 50, 60

Secondary Current (mA): 1, 1.5, 2, 2.5, 3, 10/3, 4, 5, 20/3, 7.5, 8, 10, 15, 50/3, 20, 25, 30, 100/3, 50

Rated Current Ratio: Arbitrary combination of Primary Current and Secondary Current

Accuracy Class: 0.02%

Operation Range: (5% - 300%).In

Secondary Burden: 10Ω

Power Factor: COSΦ = 1.0

Voltage Level: AC 600V

Insulation: Air

Operating Condition: Temperature: -5℃ ～ +40℃, Relative Humidity (RH): up to 85% (max 90%)

Dimension (mm): 460 x 380 x 160

Weight (kg): ~15kg
