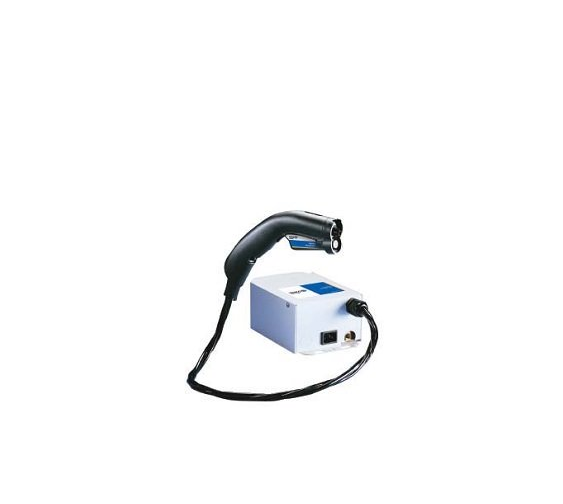

SIMCO Top Gun Ionizing Air Gun

Weight: Gun 6.5 oz (185g); Cable 1.25 oz /ft. (115 g/m); Power unit 6.0 lbs (2.7 kg)

Maximum Pressure: 100 psi; n; dry compressed air or nitrogen

Flow: 2.4 SCFM at 30 psi (68/min at 2 bar)

4.6 SCFM at 60 psi (130/min at 4 bar)

7.4 SCFM at 100 psi (210/min at 7 bar)

Discharge Time: 1.3 seconds at 6” and 30 psi (1000 V to 100 V); 0.5 seconds at 2” and 60 psi (1000 V to 100 V)

Ionization point: Special alloy

Cable Lengths: 10’ standard, 20’ optional

Approval: CE, UL
