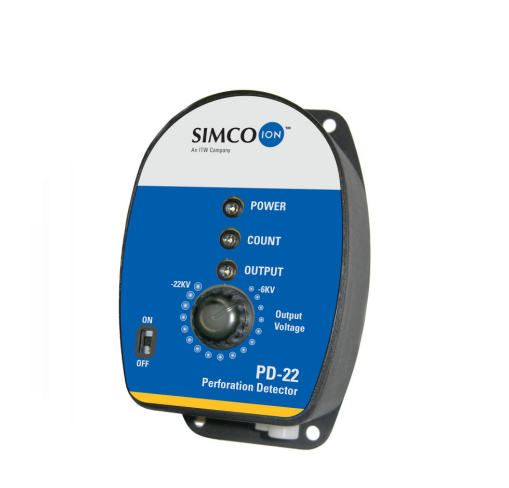

SIMCO PD-22 Perforation Detector

Manufacturer: SIMCO

Model: PD-22

Warranty: 12 months

Input Power: 24VDC, 0.6 A, 14W (Max.)

Output Voltage Range: 2 to 22kVDC (Negative Polarity)

Output Current: 1mA (Max, Single Port Powered)

Detector Output: 15ms Pulse

Switching Current (IF)60mA

Detector Frequency: 5Hz Max.

Operating Temperature: 32°F (0°C) to 122°F (50°C)

Status Indicators:

Power: Green LED

Count Control: Yellow LED

Output Voltage: Blue LED

Interface Connections: (12) Position Terminal Block

Enclosure: Glass Reinforced Polycarbonate

Overall Dimensions: 6.10" L x 3.79" W x 3.10"D (154.9mm L x 96.3mm W x 78.7mm D)

Weight: 1.55 lb (0.70 kg)

Universal AC Adapter: 100-240 VAC Input /24VDC, 1.66 A Output

Compliant: RoHS
