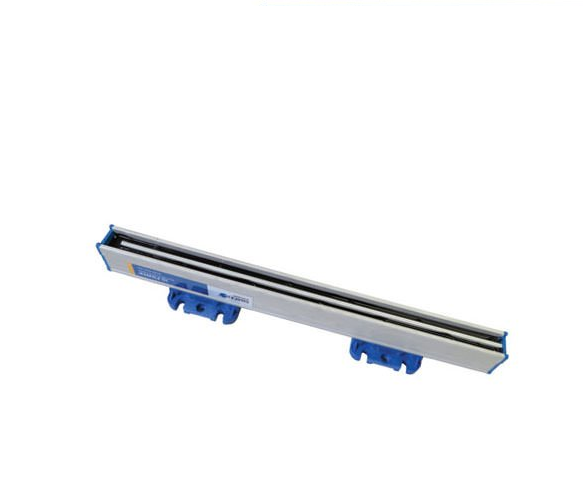

SIMCO IQ Power Static Neutralizing Bar

The IQ Power neutralizing bars are offered in over 85 different lengths and three types to suit your application based on the web speeds or operating distance. All bars include rugged mounting hardware and come standard with 10ft of power cable. Extension cords are available in 10ft, 30ft, and 50ft lengths for situations that require long power cable.

Speed: Static Bars are engineered to neutralize static charges on webs traveling up to 3,000 fpm and are mounted approximately 4” from the material to be neutralized. Our IQ Easy bar design includes an integrated high voltage supply powered by 24 VDC. Tungsten emitters are available for extreme charge conditions.

Hybrid: Static Bars are designed for varied installations up to 18” away.

Distance: Static Bars are specially engineered to provide powerful ionization for distances up to 30 inches from the web in applications where installing a static bar close to the web is not an option.
