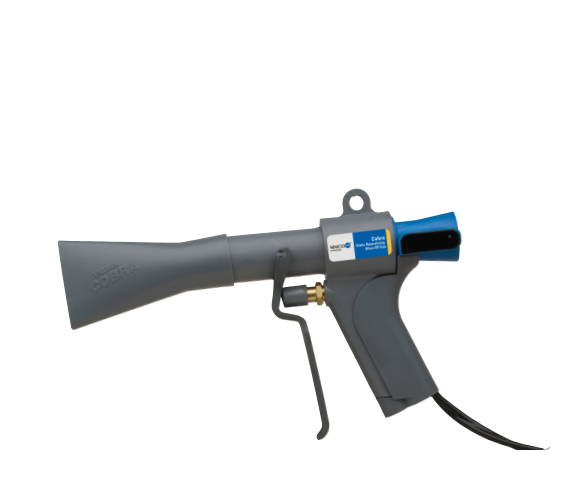

SIMCO Cobra Static Neutralizing Blow-Off Gun

Operating Voltage: 5 kV AC (5 mA Max. Short Circuit Current)

Operating Temperature: 110 F (43 C) Maximum

Operating Humidity: 70% RH maximum, no dewing permissible

Weight: 1.5 lb (Gun w/ 20’ cable)

Materials: High Impact Plastic Gun Body; Stainless Steel (Type 302) Ionizing Point

Compressed Air Supply Pressure (1/4” NPT Connection): 100 PSIG Maximum

Note: Gun body includes OSHA pressure relief feature

Air Consumption: 9 SCFM at 30 PSIG; 22 SCFM at 100 PSIG

Discharge Time: 0.6 seconds at 6”, 30 psig (1000V to 100V); 0.5 seconds at 6”, 100 psig (5000V to 500V)

Discharge Time (w/accessory nozzle): 0.7 seconds at 6”, 30 psig (1000V to 100V); 0.6 seconds at 6”, 100 psig (5000V to 500V)
