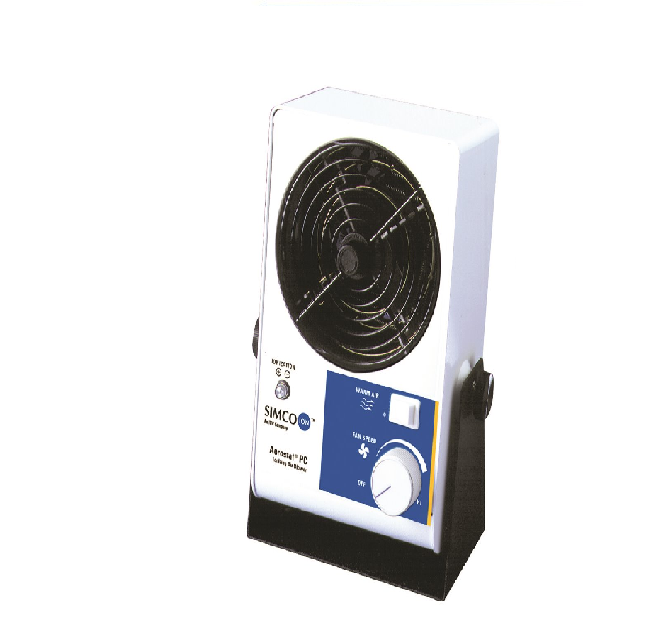

SIMCO Aerostat Aerostat Ionizing Air Blower

Power: 120 VAC, 60 Hz; 0.1 amp (fan low heater off), 1.7 amp (fan high heater on)

Discharge: 1.5 sec @ 1’; fan high (1000-100V)1

Balance: ±10V

Coverage: 1’ x 5’ area

Air Volume: 35-70 cfm

Air Velocity: 2

Fan Speed 1’ 2’ 3’ 4’

Low 250 200 150 125

High 500 400 300 250

Audible Noise Fan low: 50 dB, fan high: 57 dB (2' from unit)

Heated Temp Fan low: 25°F (14°C), fan high: 11°F (6°C); above ambient

Ozone 0.005 ppm measured 6” in front of unit; test conducted in accordance with

EPA EQQA-0577-019 using Dasibi Ozone Monitor model 10030AH

Enclosure Aluminum and Polyester Power Coat

Dimensions: 5-1/2”W x 8-5/8”H x 3-1/4”D

Weight: 5.7 lbs (2.6 kg)
