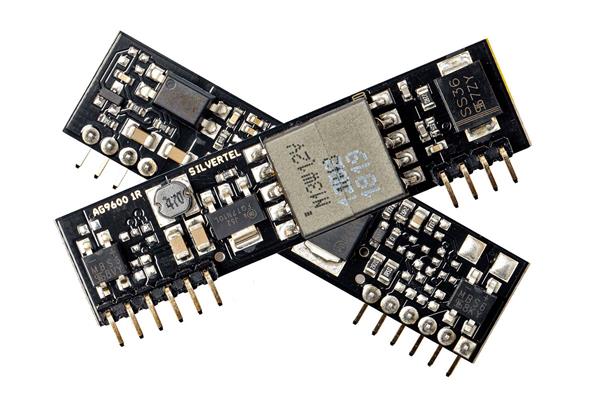

Silvertel Ag9612-S Adjustable Output PD Module, Isolated DC-DC converter, Excludes Bridge Rect diodes, IEEE802.3af compliant, 12V, SIL.

Width: 19 mm

Height: 14 mm

Length: 56 mm

Features: Short-circuit Protection

Compliance: 802.3af

Efficiency: 85 %

Output Power: 12 W

Input Voltage: 36 V to 57 V

Mounting Style: Through Hole

Load Regulation: Regulated

Number of Ports: 1 Port

Number of Outputs: 1 Output

Output Current-Channel 1: 1 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
