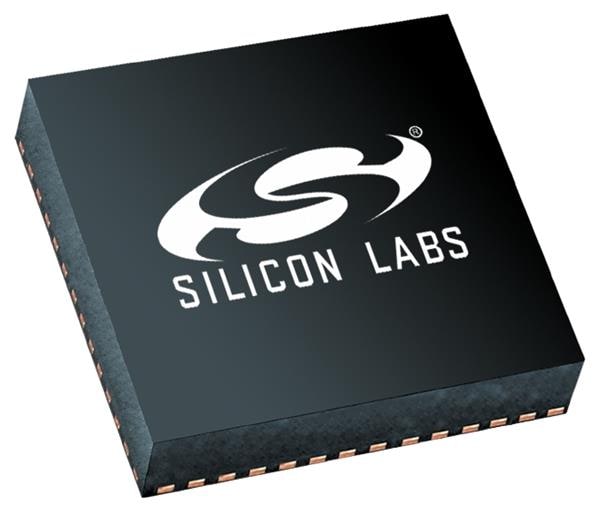

Silicon Labs EM3598-RTR Zigbee, LR-WPAN ZigBee/802.15.4--512 kB flash+64 kB RAM+32 GPIO+USB

Core: ARM Cortex M3

Width: 8 mm

Height: 0.85 mm

Length: 8 mm

Technology: Si

Sensitivity: - 100 dBm

Output Power: 3 dBm

Data RAM Size: 64 kB

Data RAM Type: RAM

Data Bus Width: 32 bit

Mounting Style: SMD/SMT

Operating Frequency: 2.4 GHz

Program Memory Size: 512 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.1 V

Maximum Clock Frequency: 24 MHz

Supply Current Receiving: 27 mA

Supply Current Transmitting: 31 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
