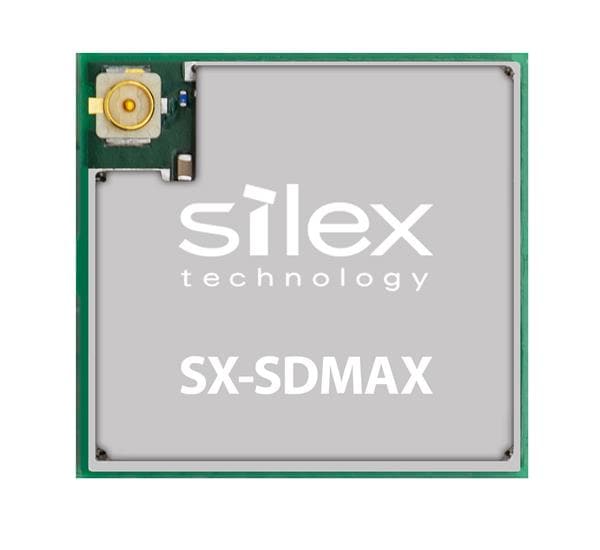

Silex Technology SX-SDMAX-2530S Dual-Band Wi-Fi 6 Plus Bluetooth Combo SDIO Module 2.4 GHz/5 GHz dual-band Wi-Fi 6 plus Bluetooth v5.3 BR/EDR/LE SDIO 3.0 module

Data Rate: 600 Mb/s

Frequency: 2.4 GHz, 5 GHz

Dimensions: 17 mm x 18 mm x 2.65 mm

Interface Type: UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Supply Voltage - Max: 3.3 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: MHF

Operating Supply Voltage: 1.8 V, 3.3 V

Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac/ax

Supply Current Receiving: 10 mA

Supply Current Transmitting: 200 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.3
