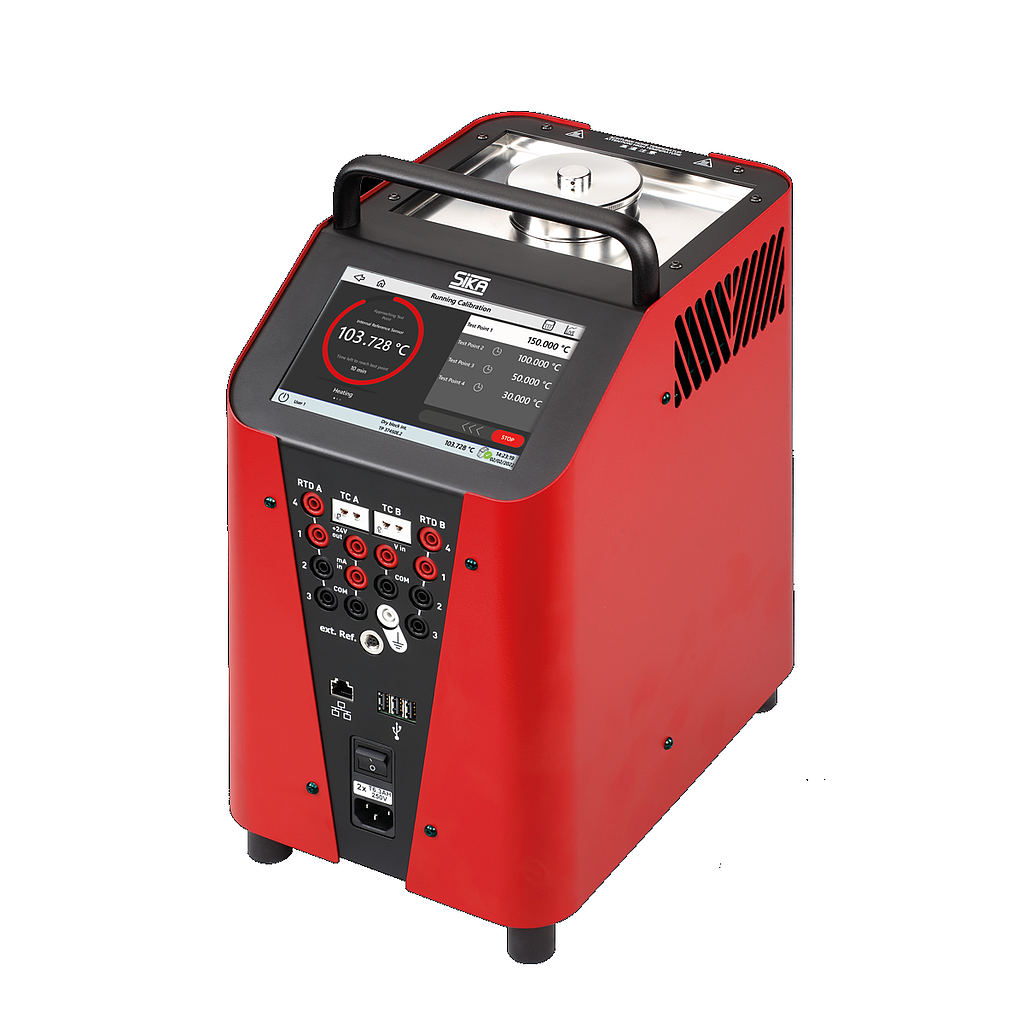

Sika TP 3M165E.2 Multi-function temperature calibrator (-35~165 °C; Without measuring instrument)

Temperature range : -35...165 °C at ambient temperature 20 °C (-31...329 °F at ambient temperature 68 °F)

Dimension for the calibration insert : Ø 60 x 170 mm (calibration insert easily exchangeable)

Dry block Air Shield Insert : Temperature range: -30...160 °C (-22...320 °F):

External reference temperature sensor:

Display accuracy : ±0.07 °C (±0.126 °F)

Temperature stability : ±<0.001…0.005 °C (±0.0018...0.009 °F)

Temperature distribution:

+ Axial: : ±0.060 °C (±0.108 °F)

+ Radial : ±0.010 °C (±0.018 °F)

Influence of load : ±0.010 °C (±0.018 °F)

Dry block: Temperature range: -30...165 °C (-22...329 °F):

External reference temperature sensor :

Display accuracy : ±0.10 °C (±0.18 °F )

Temperature stability : ±0.005 °C (±0.009 °F )

Temperature distribution:

+ Axial: ±0.200 °C (±0.36 °F)

+ Radial : ±0.050 °C (±0.09 °F)

Influence of load : ±0.080 °C (±0.144 °F )

Internal reference temperature sensor:

Display accuracy : ±0.27 °C (±0.486 °F)

Temperature stability: ±0.010 °C (±0.018 °F)

Temperature distribution:

+ Axial: ±0.200 °C (±0.36 °F)

+ Radial: ±0.050 °C (±0.09 °F)

Influence of load : ±0.150 °C (±0.27 °F)

Calibration bath (stirred), direct filling: Temperature range: -35...155 °C (-31...311 °F):

External reference temperature sensor :

Display accuracy : ±0.19 °C (±0.342 °F )

Temperature stability : ±0.010 °C (±0.018 °F)

Temperature distribution:

+ Axial: ±0.325 °C (±0.585 °F)

+ Radial: ±0.080 °C (±0.144 °F)

Influence of load : ±0.040 °C (±0.072 °F )

Internal reference temperature sensor:

Display accuracy : ±0.24 °C (±0.432 °F)

Temperature stability: ±0.020 °C ( ±0.036 °F)

Temperature distribution:

+ Axial: ±0.325 °C (±0.585 °F)

+ Radial: ±0.080 °C (±0.144 °F)

Influence of load : ±0.200 °C (±0.36 °F)

Calibration bath (stirred), tub insert: Temperature range: -35...155 °C (-31...311 °F):

External reference temperature sensor :

Display accuracy : ±0.20 °C (±0.36 °F )

Temperature stability: ±0.010 °C ( ±0.018 °F )

Temperature distribution:

+ Axial: ±0.350 °C (±0.630 °F)

+ Radial: ±0.080 °C (±0.144 °F)

Influence of load : ±0.040 °C ( ±0.072 °F )

Internal reference temperature sensor:

Display accuracy : ±0.28 °C (±0.504 °F)

Temperature stability: ±0.020 °C (±0.036 °F)

Temperature distribution:

+ Axial: ±0.350 °C (±0.630 °F)

+ Radial: ±0.080 °C (±0.144 °F)

Influence of load : ±0.300 °C (±0.54 °F)

Infrared calibration: Temperature range: -35...165°C (-31...329 °F):

External reference temperature sensor:

Display accuracy : ±0.5 °C (±0.9 °F )

Temperature stability: ±0.020 °C (±0.036 °F)

Emission factor : 0.9994

Internal reference temperature sensor:

Display accuracy : ±0.5 °C (±0.9 °F)

Temperature stability: ±0.020 °C (±0.036 °F)

Emission factor : 0.9994

Surface calibration: Temperature range: -25...150°C (-13...302 °F):

External reference temperature sensor:

Display accuracy : ±1 °C (±1.8 °F)

Temperature stability : ±0.150 °C (±0.27 °F)

Stabilisation time (with external reference temperature sensor):

to ±0.05°C (to ±0.09 °F): From 1 min

to ±0.005°C (to ±0.009 °F): From 5 min

Heating time:

20 °C…155 °C (68...311 °F): 27 min

-35 °C…155 °C (-31...311 °F): 34 min

Cooling time:

165 °C…30 °C (329...86 °F): 17 min

20 °C…-25 °C (68...-13 °F): 35 min

Resolution of the temperature display: 0.001 °C (0.001 °F)

Hysteresis : ±0.010 °C (±0.018 °F)

Temperature units : °C / °F / K (selectable)

Reference temperature sensor: internal, fixed installation / external (selectable)

Interfaces: Ethernet, 3 x USB

Connectivity : OPC UA, HTTP. Details and further possibilities on request

Dimensions:

Width: 210 mm

Height: 380 + 50 mm (Handle)

Depth: 300 mm

Weight : Approx. 13 kg

Power supply : 100...240 VAC, 50 / 60 Hz

Power consumption : Approx. 375 W

Adjustable temperature range : -50...165 °C (-58...329 °F)

Display : Brilliant color touchscreen (7 inches), multi panel safety glass
