Sika P4 Pneumatic hand test pump (-0.3~4 bar; Solid)

Pressure ranges

+ Negative pressure: -0.3 bar (depending on test sample / reference)

+ Positive pressure: 4 bar

Pressure medium: Air

Connections

Reference pressure gauge: G¼ female thread with PA hose (2 x 1 m)

Test sample: G¼ with quick coupling and pressure hose (1 m)

Basic

Dimensions: Approx. 225 x Ø 55 mm

Weight :Approx. 980 g

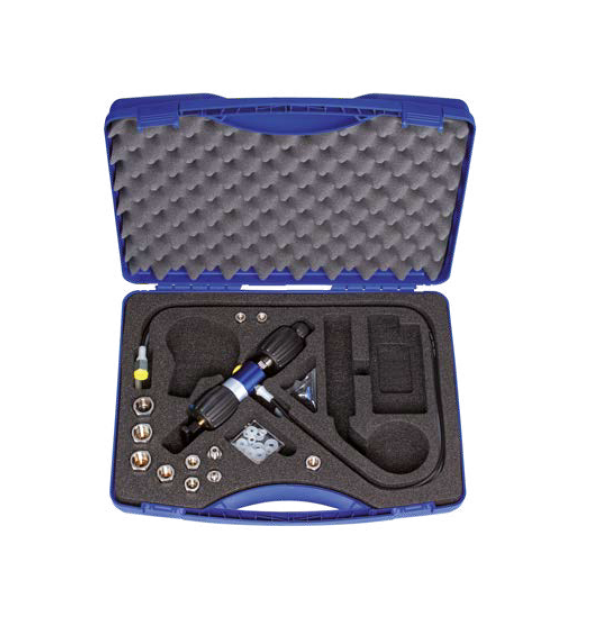

Solid

Dimensions (case): Approx. 450 x 370 x 110 mm

Weight: Approx. 4.2 kg

+ Adapter kit: Chrome-plated brass, G⅛, G¼, G⅜, G½, ⅛ NPT, ¼ NPT, ½ NPT, M12 x 1.5, M20 x 1.5, G⅛, G¼

+ Seal kit : PA flat gaskets and O-rings
