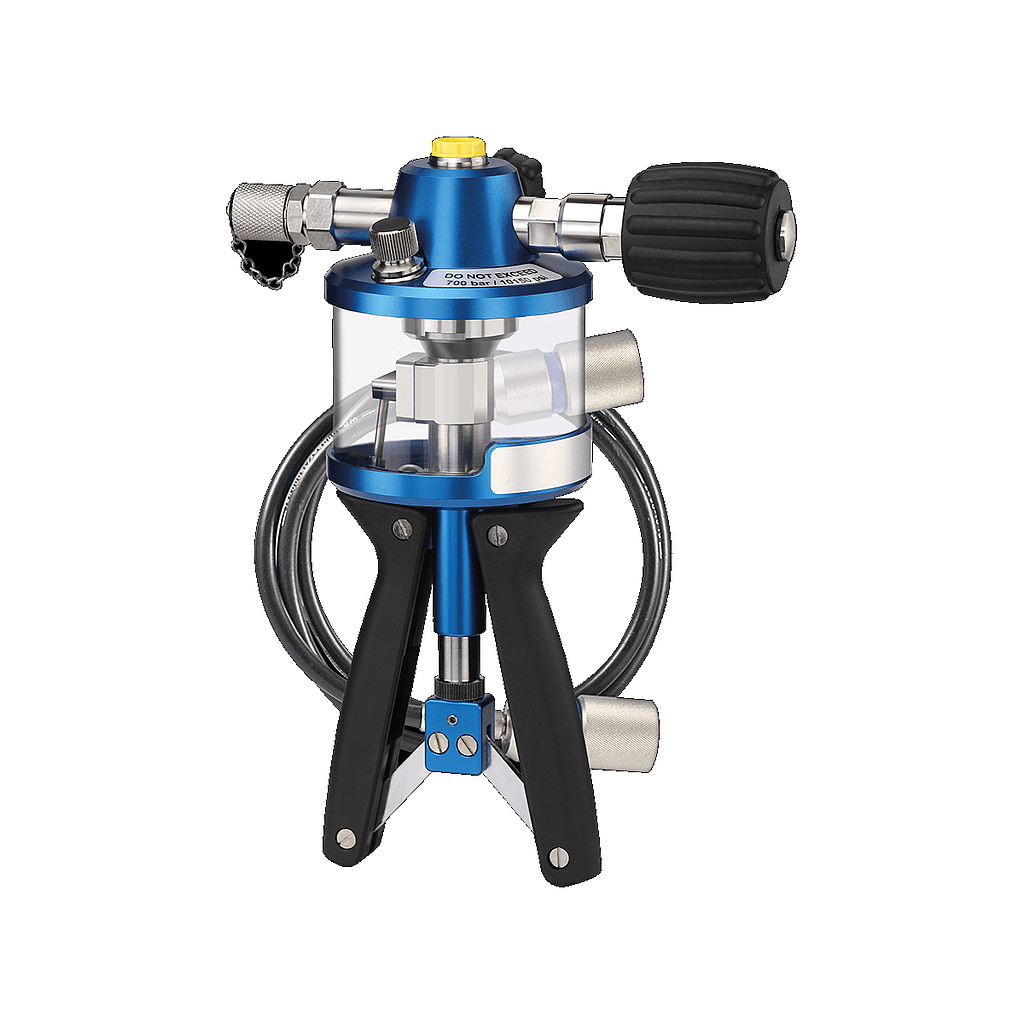

Sika P1000.2 Hydraulic hand test pump (0~1000 bar; Basic)

Pressure range: 0...1000 bar

Pressure medium : Demineralized water or hydraulic oil

Connections:

Reference pressure gauge :

Test sample : G¼ with quick coupling and high pressure hose (1 m)

Basic:

Dimensions : Approx. 255 x 225 x 85 mm

Weight : Approx. 1.9 kg

Solid:

Dimensions (case) : Approx. 450 x 370 x 125 mm

Weight : Approx. 5 kg

+ Adapter kit: Stainless steel, G⅛, G¼, G⅜, G½, ⅛ NPT, ¼ NPT, ½ NPT, M12 x 1.5, M20 x 1.5, G⅛, G¼

+ Seal kit: PA flat gaskets and O-rings
