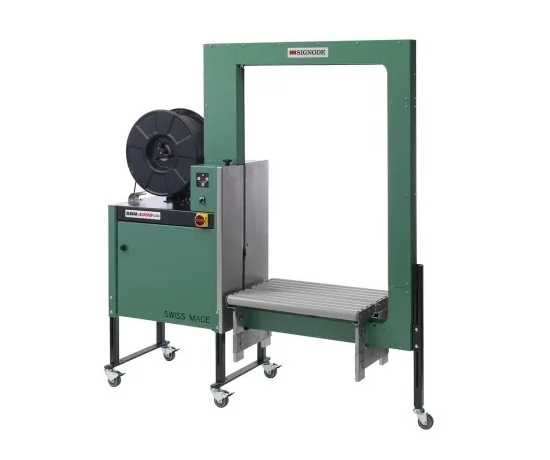

SIGNODE SBM 4400 Strapping Machine

Machine weight: Approx. 190Kg

Strap width, mm: 9/12mm Polypropylene (PP)

Heat Seal: Yes

Package weight: Approx. 50Kg - dependent on conveyor technology

Strap coil: in/out Ø: 200/430mm

Max Arch Size, mm: 1250 x 850mm

Min Arch Size, mm: 650 x 500mm

Emission sound: 79dB (A)

Relative humidity: 10 - 65%

Room temperature: 10 – 40°C

Strap tension, up to: 450N (600N)

Electricity supply: 230V 50Hz | 115V 60Hz

Seal height, mm: 560 - 1040mm

Conveyor height, mm: 560 - 1040mm

Working height, mm: NA

Performance per min: 65 cycles per minute

Dispenser position: Top
