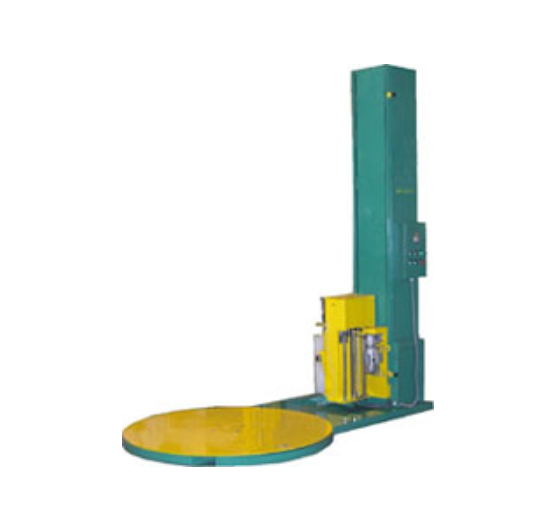

SIGNODE HLS Next Generation Sensor Stretch Wrapping Machine

Performance

Loads per hour: Up to 30

Turn table speed: Upto 10 rpm variable

Maximum load size: 1200mm(L)x 1200mm(W)x 2600mm(H)

Maximum load weight: 2000 kg (Centered)

Minimum wrap height: Turn table surface

Turn table

Table diameter: 1600mm

Support rollers: High resistance POB rollers

Drive system: Chain and sprocket type

Drive motor: 1.0 HP, 415 VAC, 3ph, 50 Hz

Turntable bed height: 90 mm from the ground

Machine Dimensions

Machine length: 2900mm

Machine width: 1610mm

Machine height: 2800mm

Machine weight: 700kg ( Approx)

Power requirements

230vac, 1phase, 50 Hz, 16amps, 2kw

Film delivery system

Pre-stretch type: Powered pre-stretch

Film stretch: Variable stretch up to 300%

Film roll width : 508mm ( 20")

Film roll Diameter - Max.: 254mm (10")

Core size: 76.2mm ( 3")

Min. film tension: 0.5 kg (approx)

Film force control: Electronically-Adjustable

Carriage speed: Adjustable, UP/Down speed through VFD

Powered pre-stretch motor: 0.5HP, 415 VAC, 3ph, 50 Hz

Electrical Controls

Controller type: PLC

Load height sensing: Photo eye

Wrap pattern: Variable wrap selection for both top and bottom wraps with reinforce wrap option

Stretch % and film consumption per Pallet display: Digital text display

Speed controllers: VFD speed controls
